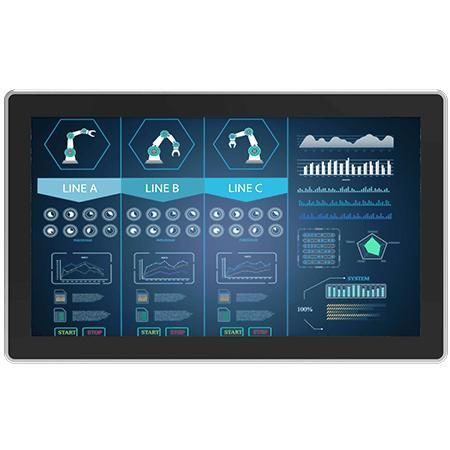

LCD monitor W24L100-PPA2

multitouch screenprojected capacitive touchscreenindustrial

Overview
The Winmate W24L100-PPA2 is a 24-inch multi-touch panel-mount display engineered for industrial visualization, control rooms and equipment monitoring. It integrates a 1920 x 1080 Full HD panel with Projected Capacitive (PCAP) multi-touch, metal housing with aluminum bezel, front IP65 protection and a fanless design for continuous operation.

Key features

• 24" 1920 x 1080P multi-touch panel-mount display
• Projected Capacitive (PCAP) multi-touch
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount support
• Aluminum bezel / metal housing; front IP65
• Fanless design and low power consumption
• USB touch interface; optional audio and speakers

Product highlights
Designed for long product life in industrial environments, the display offers effective heat dissipation and low energy draw for reliable 24/7 operation. Universal mounting options (panel, VESA, wall or desk) simplify system integration. Customizable options include LCD brightness, glass surface treatment, input ports and regional power plug choices to match deployment requirements.

Certifications

• CE
• FCC

Technical specifications

• Model: W24L100-PPA2
• Display size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89, 89, 89, 89
• Display color: 16.7M Colors
• Active area: 527.04 x 296.46 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimensions (W x H x D): 625 x 390 x 62 mm
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Power rating: 12V DC in; 24V DC in (optional)
• Button control: 5 keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies by product)
