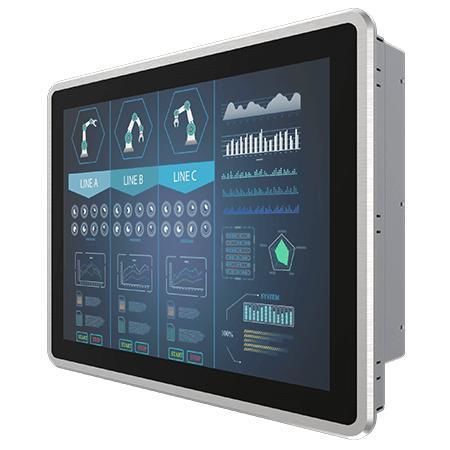

Multitouch screen monitor R15L600-PPC3(HB)

projected capacitive touchscreenindustrialfor HMI interface

Product Overview
Winmate R15L600-PPC3(HB) is a 15-inch panel-mount multi-touch display engineered for industrial visualization, control rooms and equipment monitoring. Designed for continuous operation with low power consumption and effective heat dissipation, it supports panel and VESA mounting, a metal housing with aluminum bezel and front IP65 protection. Available with standard or high-brightness panels and multiple customization options for brightness, glass treatment, video ports and enclosure finish.

Key Features

• 15-inch display, 1024 x 768 resolution
• Projected Capacitive (P-CAP) multi-touch with USB interface
• VGA input (default); HDMI and DVI optional
• Panel-mount and VESA-mount support
• Metal housing with aluminum bezel
• Front IP65 protection
• Fanless design for thermal reliability

Product Highlights

• Low power consumption and effective heat dissipation for continuous industrial use
• Universal mounting options for panel, wall and desk installations
• High image quality and reliability for factory and control-room environments
• Customizable: panel brightness, glass surface treatment, display ports and enclosure finish

Specifications

• Model: R15L600-PPC3(HB)
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 15.0 inches
• Resolution: 1024 x 768
• Panel Brightness: 300 nits (Default); 1000 nits (Optional)
• Contrast Ratio: 2000:1
• View Angles: 88/88/88/88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• IO Ports: 1 x USB (touch)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 367 x 291 x 63.8 mm
• Cut out: 360 x 261 mm
• Weight: 4.4 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Power Rating: 12V DC in; 24V DC in (optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional)
