Multitouch screen monitor R19L300-PPA1HB

projected capacitive touchscreenPCAP capacitive touch screen19"

Overview

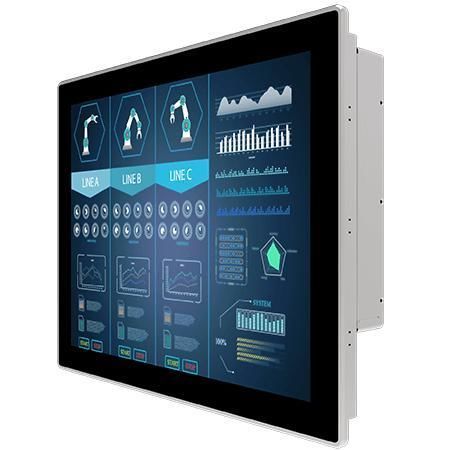

Winmate R19L300-PPA1HB is a 19-inch industrial multi-touch panel-mount high-brightness display engineered for industrial visualization, control rooms and equipment monitoring. It provides a high-brightness PCAP touchscreen, multiple video inputs and front protection for reliable operation in harsh environments.

Key Features

• 19-inch display, 1280 x 1024 resolution
• VGA (default) input; HDMI and DVI available as options
• Panel-mount with optional VESA mounting
• High-brightness panel (1000 nits)
• Projected Capacitive (PCAP) multi-touch
• Front protection rating: IP65

Certifications

• CE
• FCC

Product Highlights / Benefits

• Low power consumption and effective heat dissipation for continuous operation in production environments
• Flexible mounting options (panel-mount, VESA) for easy integration into control panels, consoles and enclosures
• Designed for long-term reliability and clear image quality in industrial enclosures
• Customization options: product size, customer logo, LCD brightness, glass surface treatment and display ports

Specifications

• Model: R19L300-PPA1HB
• Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certifications: CE, FCC
• IO Ports: 1 x USB for touch screen
• Video Inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
