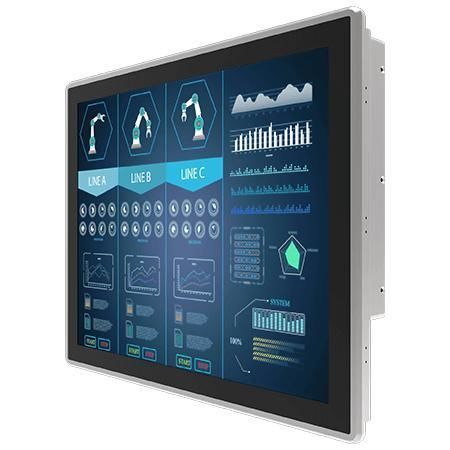

LCD monitor R17L100-PPM1

multi-touch screenPCAP capacitive touch screenfor displays

Overview
R17L100-PPM1 is a 17-inch multi-touch panel-mount display engineered for industrial visualization, control rooms and equipment monitoring, aimed at industrial buyers, OEMs and system integrators requiring long-term availability and rugged front-end displays.

Highlights

• 17-inch diagonal, 1280 x 1024 resolution
• Projected capacitive (PCAP) multi-touch
• VGA input (default); HDMI and DVI optional
• Panel-mount and VESA mount support
• Metal housing with aluminum bezel
• Front protection rating IP65
• Fanless, low-power design for continuous operation

Key features & product benefits

• Low power consumption: Optimized for reduced power draw and effective heat dissipation suitable for continuous use in production environments.
• Flexible mounting: Supports panel cut-out installation and VESA mounting for wall, console or enclosure integration.
• Industrial reliability: Metal enclosure and industrial-grade assembly for stable operation in factory and control-room conditions.
• Image quality: Controlled assembly and quality modules deliver consistent 16.2M color reproduction and 1000:1 contrast.
• IO & customization: Multiple video ports, USB touch interface and options for brightness, glass treatment and power input (12V standard, 24V optional).

Certifications

• CE
• FCC

Technical specifications

• Display size: 17.0 inches
• Touch / glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85 / 85 / 80 / 80 (L / R / T / B)
• Display color: 16.2M colors
• Active area: 337.920 x 270.336 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB port: 1 × USB for touch screen
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 × speaker optional
• Mechanical dimension (listed): 393 × 325 × 67 mm (alternate listing: 437.92 × 372.74 × 52 mm)
• Cut out (listed): 373 × 305 mm (alternate listing: 393 × 324 mm)
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Accessories included: 1 × VGA cable; 1 × HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Power rating: 12V DC input (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
