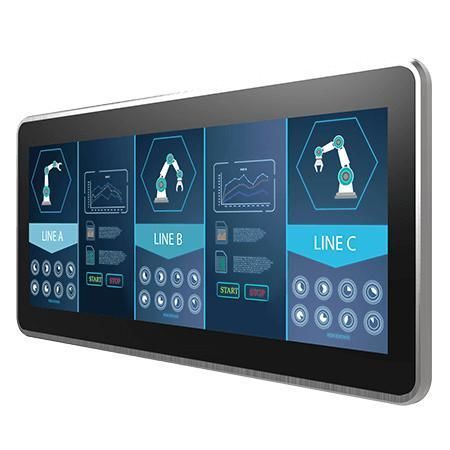

Multi-touch screen monitor W15L100-PPB2

projected capacitive touchscreenfor industrial machinesfor HMI interface

Overview
Winmate W15L100-PPB2 is a 14.9" panel-mount multi-touch display for industrial visualization, control rooms and equipment monitoring. It features a projected-capacitive multi-touch panel, 1920 × 720 resolution and front IP65 protection for dust and water resistance.

Key features

• 14.9" 1920 × 720 resolution
• Projected Capacitive (P-CAP) multi-touch
• Panel-mount (open-frame) form factor
• VGA input (standard); HDMI/DVI optional
• Front IP65 rating

Certifications

• CE
• FCC

Recommended applications
Designed for integration into industrial panels, operator consoles, embedded systems and control-room displays where reliable touch input and stable hardware integration are required.

Display & Visual

• Size: 14.9 inches
• Resolution: 1920 × 720
• Panel brightness: 950.0 nits
• Contrast ratio: 1000:1
• Viewing angles: 85°/85°/85°/85°
• Colors: 16.7M
• Active area: 355.68 × 133.38 mm

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front IP rating: IP65

I/O and Connectivity

• USB: 1 × USB for touch
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Line in (3.5 mm, optional); 2 × speaker (optional)

Mechanical & Construction

• Dimensions (W×H×D): 400 × 187.6 × 59 mm
• Cut-out: 378.1 × 164.6 mm
• Weight: 5.5 kg
• Mounting: Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design

Accessories

• Included: VGA cable; HDMI cable; 100~240V AC-to-DC adapter; power cord; manual; VESA screws (varies)
• Optional: Remote controller (varies)

Power

• Power input: 12V DC in (standard); 24V DC in (optional)

Control

• Front keys: 5 keys (-, +, Power, Esc, Enter)

Technical specifications

• Model: W15L100-PPB2
• Brand: Winmate
• Display size: 14.9 inches
• Panel type: Projected Capacitive Multi-Touch
• Resolution: 1920 × 720
• Brightness: 950.0 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/85/85
• Colors: 16.7M
• Active area: 355.68 × 133.38 mm
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front IP rating: IP65
• Certifications: CE, FCC
• I/O: 1 × USB (touch); VGA standard; HDMI/DVI optional
• Dimensions: 400 × 187.6 × 59 mm
• Cut-out: 378.1 × 164.6 mm
• Weight: 5.5 kg
• Mounting: Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless
