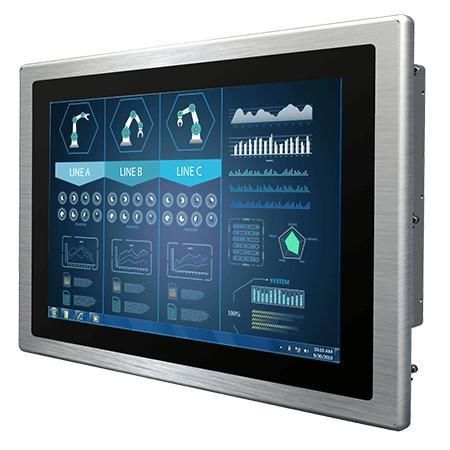

LCD monitor W15L100-PPA2HB

multitouch screenprojected capacitive touchscreenfor HMI interface

Product
Winmate W15L100-PPA2HB — 15.6" Multi-Touch Panel Mount High Brightness Display designed for industrial visualization, control rooms and equipment monitoring. Suitable for rugged, embedded and mission-critical environments where stable hardware integration and long lifecycle availability are required.

Key Features

• 15.6" display with 1366 x 768 resolution
• VGA (default) and HDMI/DVI optional inputs
• Panel mount and VESA mount support for versatile installation
• High brightness panel (1300 nits) for readability in bright environments
• Projected capacitive (PCAP) multi-touch
• Front protection rating: IP65
• Multiple customization options for ports, brightness and glass treatment

Applications

• Industrial automation HMI and operator panels
• Control rooms, monitoring stations and SCADA interfaces
• Embedded equipment, kiosks and POS systems
• Transportation and onboard systems requiring high visibility

Design & Reliability

• Low power design: Engineered for low power consumption and effective heat dissipation to support long-term operation in production environments.
• Robust mounting: Universal panel and VESA mounting options allow fast integration in enclosures, panels or racks.
• Industrial build: Rugged enclosure and industrial-grade components ensure reliable operation in demanding environments.

Connectivity & Customization

• Multiple video interfaces (VGA default; HDMI/DVI optional) to fit different control systems
• USB for touch input; optional audio and speakers
• Configurable power input options (12V DC standard; 24V DC optional)
• Custom options available: panel brightness, glass surface treatments, housing and accessory configurations

Certifications

• CE
• FCC

Technical Specifications

• Model: W15L100-PPA2HB
• Size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1366 x 768
• Panel Brightness: 1300.0 nits
• Contrast Ratio: 500:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 344.232 x 195.536 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
