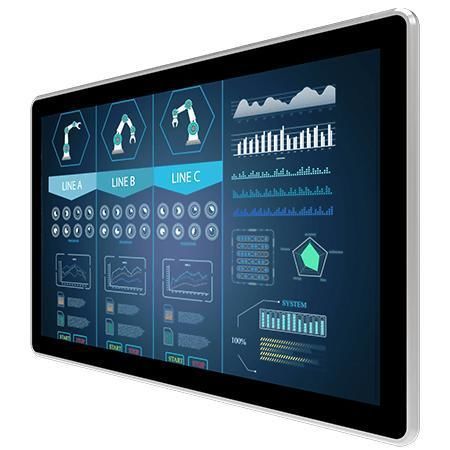

LCD monitor W22L100-PPA3HB

multitouch screenprojected capacitive touchscreenindustrial

Overview
Winmate W22L100-PPA3HB is a 21.5-inch high-brightness industrial multi-touch panel-mount display designed for industrial visualization, control rooms and equipment monitoring. It features a metal enclosure with aluminum bezel, front IP65 protection and 1000 nits brightness to ensure visibility in demanding environments.

Key features

• 21.5 inches, 1920 x 1080 Full HD
• Projected capacitive multi-touch (P-CAP)
• VGA (standard) and optional HDMI/DVI inputs
• Panel-mount and VESA mounting options
• Metal enclosure with aluminum bezel
• High brightness: 1000 nits
• Front IP65 protection

Product highlights and benefits

• Fanless design for low power consumption and effective heat dissipation in industrial settings
• Versatile mounting for panel, wall or desk installation via VESA
• Full HD resolution, 16.7M colors and high contrast for clear image reproduction
• Customization options for panel brightness, glass surface treatment, display ports and mechanical dimensions

Certifications
CE, FCC

IO & optional features

• USB: 1 × USB for touch
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 × speakers (optional)

Accessories (included / optional)

• Typical included: 1 × VGA cable; 1 × HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: remote controller (varies by product)

Applications
Industrial visualization, control rooms, equipment monitoring, OEM integration and rugged embedded systems where high brightness, front protection and durable mounting are required.

Technical specifications

• Model: W22L100-PPA3HB
• Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 5000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Dimension (mechanical): 533 x 324 x 77 mm
• Cut out: 504 x 304 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 × USB for touch screen
• Video Ports: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 × speakers (optional)
• Buttons / Control: 5 keys: -, +, Power, Esc, Enter
• Typical accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws
