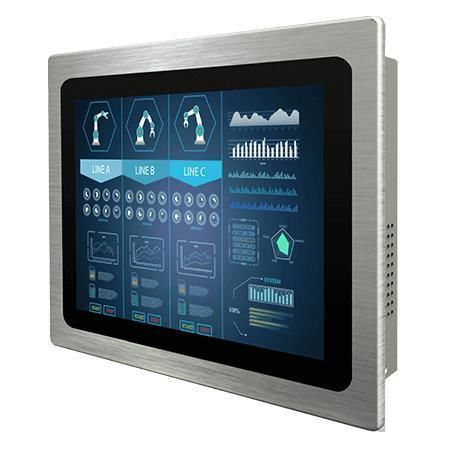

LCD monitor R08L200-PPU1

multi-touch screenPCAP capacitive touch screenfor displays

Overview
The R08L200-PPU1 is an 8.4" multi-touch panel mount display engineered for industrial visualization, control rooms and equipment monitoring. It targets OEMs, system integrators and industrial buyers who need a long-life, serviceable display with front IP65 protection, PCAP touch and multiple video interfaces.

Key Features

• 8.4" diagonal, 800 x 600 resolution, Projected Capacitive (PCAP) multi-touch
• VGA input (default), HDMI and DVI optional
• Panel mount and VESA mount options
• Front protection: IP65
• Panel brightness 600 nits; contrast ratio 600:1
• Fanless design, metal housing with aluminum bezel

Certifications

• CE
• FCC

Low power consumption
The display is designed for low power draw and effective heat dissipation to support continuous operation in production environments and energy-conscious installations.

Easy mounting
Supports standard panel cut-out and VESA mounting for straightforward integration into consoles, control cabinets and machine panels.

Reliability for industrial applications
Metal enclosure and fanless thermal design reduce maintenance points and support extended service life in industrial ambient conditions. Multiple configuration options are available to match application requirements.

Image quality
Manufactured under controlled assembly processes to ensure consistent color and brightness suitable for monitoring, HMI and visualization tasks.

Display ports and customization
Standard I/O includes 1 x VGA and 1 x USB (touch). Optional interfaces: HDMI, DVI, audio line-in (3.5 mm) and speakers. Power input: 12V DC. Customization options available for brightness, glass surface treatment and enclosure features.

Technical specifications

• Display Size: 8.4 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 800 x 600
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• View Angles: 75, 75, 60, 70
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• IO Ports: 1 x USB (touch)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 233 x 196 x 51 mm
• Cut out: 222 x 164 mm
• Weight: 1.5 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies)
• Optional Accessory: Remote Controller (optional)
• Power Rating: 12V DC in
• Control Buttons: 5 Keys (-, +, Power, Esc, Enter)
