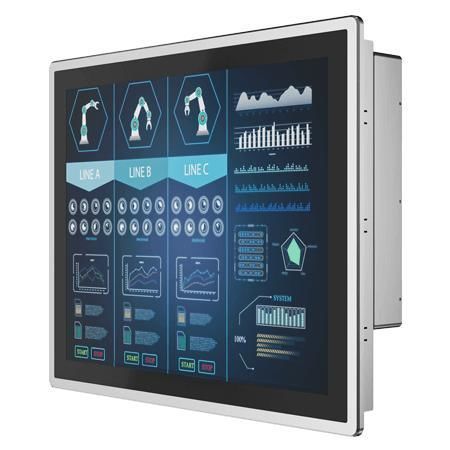

Multitouch screen monitor R19L300-PPM1

projected capacitive touchscreenfor displaysfor industrial machines

Product Overview
Winmate R19L300-PPM1 is a 19-inch projected-capacitive (P-CAP) multi-touch panel-mount display for industrial visualization, control rooms and equipment monitoring. It features an aluminum housing and front IP65 protection for reliable field operation and easy integration by OEMs and system integrators.

Key Features

• 19 inch, 1280 x 1024 resolution P-CAP multi-touch display
• VGA input (standard); HDMI and DVI optional
• Panel-mount and VESA mounting options
• Aluminum housing with Front IP65 protection
• Panel brightness 250 nits, contrast ratio 1000:1

Certifications

• CE
• FCC

Highlights

• Low power consumption and efficient heat dissipation for continuous industrial use
• Universal mounting options simplify installation in control panels and enclosures
• Consistent image quality and high reliability in harsh environments
• Customizable: panel brightness, glass surface treatment, display ports, power input and accessories

Technical specifications

• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
