Multitouch screen monitor R10L100-PPT2(HB)

PCAP capacitive touch screenfor maritime applicationsfor industrial machines

Product Name

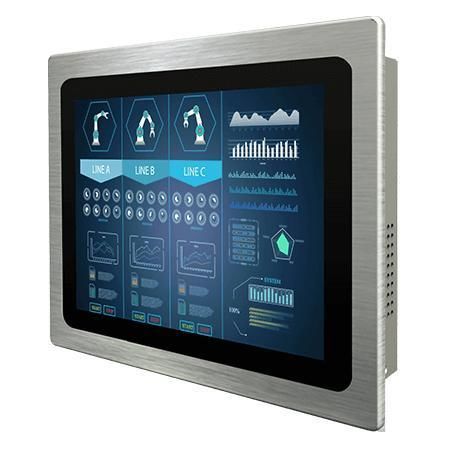

Winmate R10L100-PPT2(HB) — 10.4-inch Multi-Touch Panel Mount Display

Overview
Winmate R10L100-PPT2(HB) is a 10.4-inch projected-capacitive multi-touch panel mount display developed for industrial visualization, control rooms and equipment monitoring. It combines a metal enclosure and front IP65 protection with fanless design and low power consumption to support long-term use in OEM, system integrator and factory environments.

Key Features

• 10.4-inch diagonal, 1024 x 768 resolution
• Projected capacitive (PCAP) multi-touch supporting multi-point input
• VGA input (standard); HDMI and DVI optional
• Panel mount and VESA mount support
• Metal housing with aluminum bezel
• Front IP65 dust/water protection

Highlights / Benefits

• Low power consumption: Optimized for energy efficiency and effective heat dissipation for continuous operation.
• Flexible mounting: Panel-mount and VESA options enable installation in cabinets, consoles, walls or desks.
• Industrial reliability: Robust enclosure and industrial-grade components for stable operation in harsh environments.
• High image quality: 1024 x 768 with standard 350 nits (1000 nits optional) to suit different ambient lighting.
• Customizable I/O and options: Multiple video interfaces, brightness options and accessory configurations to match application requirements.

CERTIFICATIONS & IP

• CE
• FCC
• Front IP65

Technical specifications

• Touch / Glass: Projected Capacitive (PCAP) multi touch screen
• Size: 10.4 inches
• Resolution: 1024 x 768
• Panel Brightness: 350 nits (Default); 1000 nits (Optional)
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 284.2 x 252 x 55 mm
• Cut out: 262 x 218 mm
• Weight: 2.3 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies)
• Optional Accessory: Remote controller (optional, varies)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Controls / Buttons: 5 keys — -, +, Power, Esc, Enter
