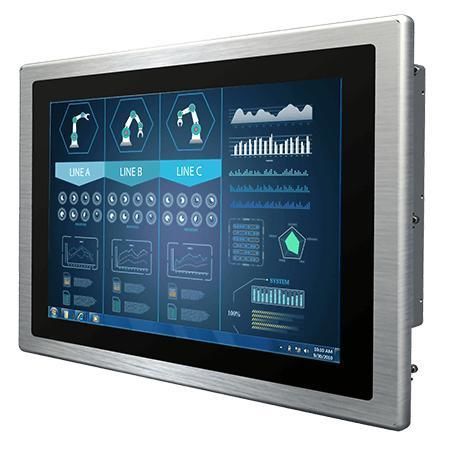

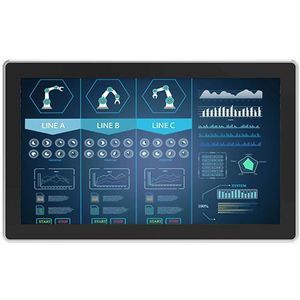

Multitouch screen monitor W15L100-PPA4

projected capacitive touchscreenPCAP capacitive touch screenindustrial

Overview
The W15L100-PPA4 is a 15.6 inches multi-touch panel mount display engineered for industrial visualization, control rooms and equipment monitoring. It offers Full HD 1920 x 1080 resolution, projected capacitive multi-touch, multiple video input options and a front IP65 rating for dust and splash protection. The aluminum housing and low-power design make it suitable for continuous operation in mission-critical environments.

Key features

• 15.6 inches, 1920 x 1080 (Full HD)
• Projected Capacitive (P-CAP) multi-touch
• VGA (standard), HDMI (optional), DVI (optional)
• Panel mount and VESA mount support
• Aluminum housing with front IP65
• 400 nits panel brightness, 800:1 contrast

Product details

• Designed for continuous use - Low power consumption and effective heat dissipation for long-term operation in production and industrial sites.
• Flexible mounting - Panel and VESA mounting options for integration into control stations, machine interfaces and OEM equipment.
• Industrial-grade reliability - Rugged enclosure and controlled assembly processes ensure stable performance in factory and embedded applications.
• Image quality and customization - Consistent optical performance; configurable options for panel brightness, glass surface treatment, I/O and power variants to match system requirements.
• Connectivity and accessories - USB for touch, multiple video ports, optional audio and speakers. Standard and optional accessories vary by region and configuration.

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 15.6 inches
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• Viewing Angles: 85 / 85 / 85 / 85
• Display Color: 262K Colors
• Active Area: 344.16 x 193.59 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speakers (optional)
• Accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Control / Buttons: 5 keys (-, +, Power, Esc, Enter)
