Round sling

fabricendlesspolyester

Introduction
The endless polyester round lifting sling is designed for safe handling of cylindrical and irregular loads by looping the sling around the load without end fittings or hooks. Available in orange; example diameter 12 mm. Working load limits (WLL) available from 1T to 100T to suit a wide range of industrial lifting tasks.

Parameters

• Material: Polyester (round lifting sling)
• Design: Endless / continuous (no end fittings)
• Color: Orange
• Diameter (example): 12 mm
• WLL range: 1 T to 100 T (variants available)
• Reference images: https://www.toponechain.com/static/upload/image/20250407/1744008190102735.jpg, https://www.toponechain.com/static/upload/image/20250407/1744008205894840.jpg, https://www.toponechain.com/static/upload/image/20250407/1744008222104603.jpg

Table data (factors & WLL)

• Load factors depend on hitch type and angle (examples: straight 1.0, choked 0.8, basket 2.0; additional angle-specific factors apply).
• Examples: WLL 1T → Straight 1.0 T / Choked 0.8 T / Basket 2.0 T; WLL 20T → Straight 20 T / Choked 16 T / Basket 40 T; WLL 100T → Straight 100 T / Choked 80 T / Basket 200 T.
• Consult the full WLL matrix and factor table in the reference images for precise configurations and angle variations.

Standards

• Q1: Do you have relevant certificates? A1: TUV-CE for most products, ISO 9001 and ISO 14001; official quality test reports available.
• Q2: Can I have a sample for testing? A2: Yes, samples available (express costs may apply).
• Q3: Can you provide OEM or ODM service? A3: Yes, OEM/ODM services available; custom logos can be added.
• Q4: Inspection procedures? A4: Complete testing process and production-line inspection are in place.

Usage notes

• Endless design: loop sling around load; no hook required.
• Suitable for cylindrical, rounded or irregular loads.
• Inspect sling before each use; remove from service if damaged, cut or worn.
• Avoid contact with sharp edges, excessive heat or aggressive chemicals; store in a dry, cool place.

Specifications

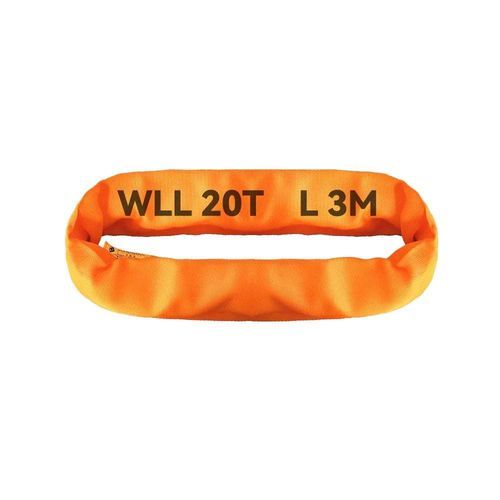

• Commercial name: 20 Ton Round Sling (endless) Orange
• Material: Polyester
• Design: Endless / continuous (no end fittings)
• Color: Orange
• Diameter: 12 mm (example)
• Primary use: Lifting cylindrical or irregular loads by looping the sling
• WLL: available variants from 1T to 100T (see parameter matrix)
• Standards & certificates: TUV-CE (most products), ISO 9001, ISO 14001; test reports available
