Round sling

endlesspolyester

Introduction
Speed up loading operations with this polyester round lifting sling (endless). Its flexible construction secures palletless or irregular goods and enables faster handling. Available in nominal WLL from 1T to 100T, typical lengths 1–10 m and designed with a 7:1 safety factor.

Parameters
Size / Color / Working Load Limit with 1 webbing sling (ton) / Working Load Limit with 2 webbing sling (ton) / Lift in different angle (0-7° / 7-45° / 45-60° ; Up to 45° / 45-60° ; 45° ; 45-60°)
Factor: 1.0 ; 0.8 ; 2.0 ; 1.4 ; 1.0 ; 0.7 ; 0.5 ; 1.4 ; 1.12 ; 1.0 ; 0.8
WLL 1T: 1.0 ; 0.8 ; 2.0 ; 1.4 ; 1.0 ; 0.7 ; 0.5 ; 1.4 ; 1.12 ; 1.0 ; 0.8
WLL 2T: 2.0 ; 1.6 ; 4.4 ; 2.8 ; 2.0 ; 1.4 ; 1.0 ; 2.8 ; 2.24 ; 2.0 ; 1.6
WLL 3T: 3.0 ; 2.4 ; 6.1 ; 4.2 ; 3.0 ; 2.1 ; 1.5 ; 4.2 ; 3.36 ; 3.0 ; 2.4
WLL 4T: 4.0 ; 3.2 ; 8.0 ; 5.6 ; 4.0 ; 2.8 ; 2.0 ; 5.6 ; 4.48 ; 4.0 ; 3.2
WLL 5T: 5.0 ; 4.0 ; 10 ; 7.1 ; 5.0 ; 3.5 ; 2.5 ; 7.1 ; 5.60 ; 5.0 ; 4.0
WLL 6T: 6.0 ; 4.8 ; 12 ; 8.4 ; 6.0 ; 4.2 ; 3.0 ; 8.4 ; 6.72 ; 6.0 ; 4.8
WLL 8T: 8.0 ; 6.4 ; 16 ; 11.2 ; 8.0 ; 5.6 ; 4.0 ; 11.2 ; 8.96 ; 8.0 ; 6.4
WLL 10T: 10 ; 8.0 ; 20 ; 14.0 ; 10 ; 7.0 ; 5.0 ; 14.0 ; 11.20 ; 10 ; 8.0
WLL 12T: 12 ; 9.6 ; 24 ; 16.8 ; 12 ; 8.4 ; 6.0 ; 16.8 ; 13.44 ; 12 ; 9.6
WLL 15T: 15 ; 12 ; 30 ; 21.0 ; 15 ; 10.5 ; 7.5 ; 21.0 ; 16.80 ; 15 ; 12
WLL 20T: 20 ; 16 ; 40 ; 28.0 ; 20 ; 14.0 ; 10 ; 28.0 ; 22.40 ; 20 ; 16
WLL 30T: 30 ; 24 ; 60 ; 42.0 ; 30 ; 21.0 ; 15 ; 42.0 ; 33.60 ; 30 ; 24
WLL 50T: 50 ; 40 ; 100 ; 70.0 ; 50 ; 35.0 ; 25 ; 70.0 ; 56.00 ; 50 ; 40
WLL 60T: 60 ; 48 ; 120 ; 84.0 ; 60 ; 42.0 ; 30 ; 84.0 ; 67.20 ; 60 ; 48
WLL 80T: 80 ; 64 ; 160 ; 112 ; 80 ; 56.0 ; 40 ; 112 ; 89.60 ; 80 ; 64
WLL 100T: 100 ; 80 ; 200 ; 140 ; 100 ; 70.0 ; 50 ; 140 ; 112.00 ; 100 ; 80

Standards

• Q1: Do you have relevant certificate? — A1: TUV-CE certificate for most products; ISO9001 and ISO14001; official quality test report for all products.
• Q2: Can I have a sample for testing? — A2: Sample available (buyer pays express).
• Q3: Can you provide OEM or ODM service? — A3: OEM/ODM available; logo can be added on the product.
• Q4: Do you have inspection procedures for the manufacture line? — A4: Complete testing process in place.

Characteristics / Technical specifications

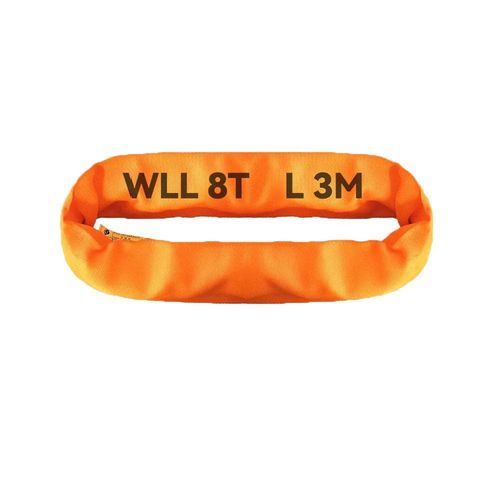

• Product name: Round Sling (endless)
• Type: Polyester round lifting sling, endless (round sling)
• Nominal Working Load Limit (example model on this page): 8 Ton (WLL 8T)
• Available nominal WLL range shown in parameter table: 1T up to 100T
• Safety factor / design margin: 7:1 (as stated for slings)
• Available lengths: 1–10 m (general availability indicated)
• Color: Orange (product page); other colors referenced in catalog information
• Lift angle multipliers and equivalent capacities provided in parameter table (see full Parameter section above for angle-specific values)
• Standards & quality: TUV-CE, ISO9001, ISO14001, and official quality test reports available
