Round sling

fabricendless2-point

Introduction

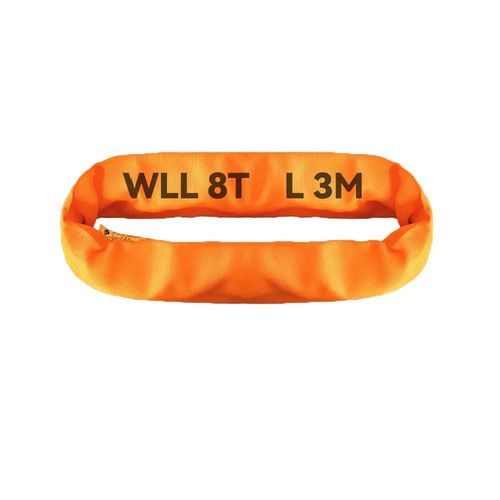

Polyester endless round lifting slings designed for industrial lifting and load handling. Flexible and compact, these round slings enable faster palletless handling and secure contact with irregular loads. Available in orange, lengths from 1 m to 10 m, with a design safety margin of 7:1.

Parameters (table values for Working Load Limits and factors)
Note: the following rows reproduce the WLL and factor values shown on the product page. Column sequence corresponds to sling configurations (1-webbing sling: straight / choked / angled; 2-webbing sling: multiple angle configurations).

Header row (conceptual): Size / Color | 1-webbing sling (multiple configurations) | 2-webbing sling (multiple configurations)

Factor row: 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8

WLL 1T: 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8
WLL 2T: 2.0 | 1.6 | 4.4 | 2.8 | 2.0 | 1.4 | 1.0 | 2.8 | 2.24 | 2.0 | 1.6
WLL 3T: 3.0 | 2.4 | 6.1 | 4.2 | 3.0 | 2.1 | 1.5 | 4.2 | 3.36 | 3.0 | 2.4
WLL 4T: 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 2.8 | 2.0 | 5.6 | 4.48 | 4.0 | 3.2
WLL 5T: 5.0 | 4.0 | 10.0 | 7.1 | 5.0 | 3.5 | 2.5 | 7.1 | 5.60 | 5.0 | 4.0
WLL 6T: 6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 4.2 | 3.0 | 8.4 | 6.72 | 6.0 | 4.8
WLL 8T: 8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 5.6 | 4.0 | 11.2 | 8.96 | 8.0 | 6.4
WLL 10T: 10.0 | 8.0 | 20.0 | 14.0 | 10.0 | 7.0 | 5.0 | 14.0 | 11.20 | 10.0 | 8.0
WLL 12T: 12.0 | 9.6 | 24.0 | 16.8 | 12.0 | 8.4 | 6.0 | 16.8 | 13.44 | 12.0 | 9.6
WLL 15T: 15.0 | 12.0 | 30.0 | 21.0 | 15.0 | 10.5 | 7.5 | 21.0 | 16.80 | 15.0 | 12.0
WLL 20T: 20.0 | 16.0 | 40.0 | 28.0 | 20.0 | 14.0 | 10.0 | 28.0 | 22.40 | 20.0 | 16.0
WLL 30T: 30.0 | 24.0 | 60.0 | 42.0 | 30.0 | 21.0 | 15.0 | 42.0 | 33.60 | 30.0 | 24.0
WLL 50T: 50.0 | 40.0 | 100.0 | 70.0 | 50.0 | 35.0 | 25.0 | 70.0 | 56.00 | 50.0 | 40.0
WLL 60T: 60.0 | 48.0 | 120.0 | 84.0 | 60.0 | 42.0 | 30.0 | 84.0 | 67.20 | 60.0 | 48.0
WLL 80T: 80.0 | 64.0 | 160.0 | 112.0 | 80.0 | 56.0 | 40.0 | 112.0 | 89.60 | 80.0 | 64.0
WLL 100T: 100.0 | 80.0 | 200.0 | 140.0 | 100.0 | 70.0 | 50.0 | 140.0 | 112.00 | 100.0 | 80.0

Standards / Additional information
Q1: Do you have relevant certificate? A1: TUV-CE available for most products; ISO 9001 and ISO 14001; official quality test reports available.
Q2: Can I have a sample for testing? A2: Sample testing possible (sample shipping costs apply).
Q3: Can you provide OEM or ODM service? A3: OEM/ODM available; custom logo application possible.
Q4: Do you have inspection procedures for the manufacture line? A4: Complete testing and inspection procedures are in place.

Technical characteristics / specifications

• Product type: Endless polyester round lifting sling (round sling)
• Material: Polyester round webbing
• Color: Orange
• Available lengths: 1 m to 10 m
• Design safety margin: 7:1
• Working Load Limits (WLL): values from 1 t to 100 t across multiple configurations (single-leg and two-leg, straight, choked and angled)
• Included technical table: factor row and WLL rows for 1T, 2T, 3T, 4T, 5T, 6T, 8T, 10T, 12T, 15T, 20T, 30T, 50T, 60T, 80T and 100T
• Certificates / quality: TUV-CE (for most products), ISO 9001, ISO 14001; quality test reports available
• Services: OEM/ODM options, sample testing available
