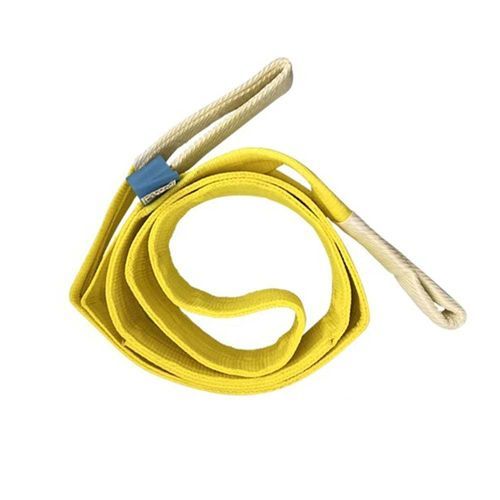

Fabric sling

flatstrap2-point

Overview
This flat webbing sling is designed for general industrial lifting applications. Manufactured from Polyester, Nylon or Polypropylene, the sling provides flexibility, corrosion resistance and a lightweight profile. Available in adjustable lengths and multiple nominal Working Load Limits (WLL). Safety/design factors up to 8:1 are applied according to configuration and standards. Suitable for single-leg, multi-leg and basket configurations in heavy-duty or light-duty lifting operations.

Parameter
Factors applied to nominal WLL (example configurations): 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8

• WLL 1T | Width 30 mm | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800
• WLL 2T | Width 50 mm | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600
• WLL 3T | Width 75 mm | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400
• WLL 4T | Width 100 mm | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200
• WLL 5T | Width 125 mm | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000
• WLL 6T | Width 150 mm | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800
• WLL 8T | Width 200 mm | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400
• WLL 10T | Width 250 mm | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000
• WLL 12T | Width 300 mm | 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600

Standards

• ISO4878
• EN1492-1/2:2000
• ASME B30.9-2003
• EN12195-2:2000

Warning

• Failure to comply with this warning may result in serious load damage and death or injury.
• Use only if trained.
• Can fail if damaged, misused or overloaded.
• Inspect sling for damage before each use.
• Always protect sling webbing from sharp edges of load.
• Do not attempt to use sling above rated lifting capacity.
• Do not use sling if rated capacity tag is removed or unreadable.
• Avoid acid, alkali and sunlight.
• Do not tie knots in sling webbing as strength is greatly reduced.
• Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.

Technical specifications

• Product name: Flat Webbing Sling
• Commercial color example: Yellow
• Materials: Polyester, Nylon, Polypropylene
• Adjustable lengths available
• Safety / design factor: up to 8:1 (factors vary by configuration)
• Available WLL and nominal web widths: 1T (30 mm), 2T (50 mm), 3T (75 mm), 4T (100 mm), 5T (125 mm), 6T (150 mm), 8T (200 mm), 10T (250 mm), 12T (300 mm)
• Working load limits provided for multiple sling configurations and hitch angles (see parameter values above)
• Standards compliance: ISO4878; EN1492-1/2:2000; ASME B30.9-2003; EN12195-2:2000
