Fabric sling

flatpolyester

Overview

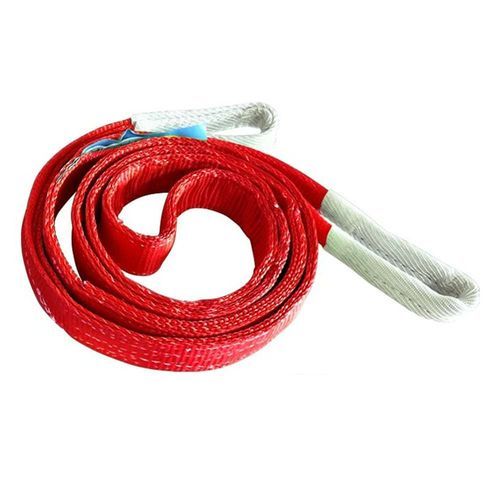

The flat webbing sling is a polyester Duplex eye–eye lifting sling designed for general-purpose industrial lifting. Available in multiple rated working load limits (WLL), it is supplied in red with selectable lengths to match your lifting application.

Parameter (summary of table)
Size | Width (mm) | WLL single sling (kg) — Straight / Choked / Lift at angles (0–7°, 7–45°, 45–60°) | WLL double sling (kg) — Straight / Choked / Lift at angles (45°, 45–60°). Example factor row: 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8. Sample ratings: WLL 1T — 30 mm — 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800. WLL 2T — 50 mm — 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600. WLL 3T — 75 mm — 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400. WLL 4T — 100 mm — 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200. WLL 5T — 125 mm — 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000. WLL 6T — 150 mm — 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800. WLL 8T — 200 mm — 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400. WLL 10T — 250 mm — 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000. WLL 12T — 300 mm — 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600.

Standards
ISO4878, EN1492-1/2:2000, ASME B30.9-2003, EN12195-2:2000.

Warning

• Failure to comply with warnings may result in serious damage, injury or death.
• Use only by trained personnel.
• Can fail if damaged, misused or overloaded.
• Inspect sling for damage before each use.
• Always protect sling webbing from sharp edges of the load.
• Do not use above rated lifting capacity.
• Do not use if the rated capacity tag is removed or unreadable.
• Avoid prolonged exposure to acids, alkalis and sunlight.
• Do not tie knots in sling webbing; strength is greatly reduced.
• Do not use if there are signs of cuts, heat or chemical damage, excessive wear, or other defects.

Technical characteristics / Specifications

• Product type: Flat webbing sling (Duplex eye–eye webbing sling)
• Material: Polyester
• Color: Red
• Available WLL variants: 1T, 2T, 3T, 4T, 5T, 6T, 8T, 10T, 12T
• Nominal widths (mm): 30 (1T), 50 (2T), 75 (3T), 100 (4T), 125 (5T), 150 (6T), 200 (8T), 250 (10T), 300 (12T)
• Included angle/load multipliers as shown in parameter summary (example: 1.0, 0.8, 2.0, 1.4, 1.0, 1.4, 1.12, 1.0, 0.8)
• Typical lifting configurations: straight lift, choked lift, lifts at 0–60° and single or double sling setups
• Primary example on this page: WLL 5T (125 mm width)
