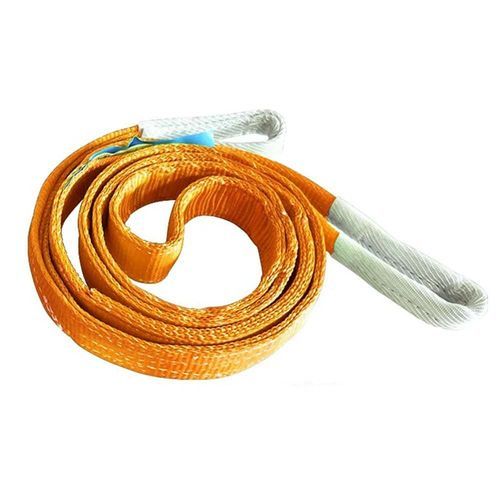

Flat sling

nylonpolyesterpolypropylene fiber

Introduction
Flat webbing sling is a versatile textile lifting sling for industrial lifting and load securing. Constructed from Polyester, Nylon or Polypropylene, it provides flexibility across different applications. Safety factors up to 8:1 are available and the product meets GS and CE requirements. Length can be customized to suit specific lifting needs.

Parameter

• Headers: Size | Width (mm) | Working Load Limit with 1 webbing sling (kg): Straight lift, Choked lift, Lift 0-7°, Lift 7-45°, Lift 45-60° | Working Load Limit with 2 webbing sling (kg): Straight lift, Choked lift, Straight lift, Choked lift
• WLL 1T | Size: 30 | 1-sling: Straight 1000, Choked 800, Lift 0-7° 2000, Lift 7-45° 1400, Lift 45-60° 1000 | 2-slings: Straight 1400, Choked 1120, Straight 1000, Choked 800
• WLL 2T | Size: 50 | 1-sling: Straight 2000, Choked 1600, Lift 0-7° 4000, Lift 7-45° 2800, Lift 45-60° 2000 | 2-slings: Straight 2800, Choked 2240, Straight 2000, Choked 1600
• WLL 3T | Size: 75 | 1-sling: Straight 3000, Choked 2400, Lift 0-7° 6000, Lift 7-45° 4200, Lift 45-60° 3000 | 2-slings: Straight 4200, Choked 3360, Straight 3000, Choked 2400
• WLL 4T | Size: 100 | 1-sling: Straight 4000, Choked 3200, Lift 0-7° 8000, Lift 7-45° 5600, Lift 45-60° 4000 | 2-slings: Straight 5600, Choked 4480, Straight 4000, Choked 3200
• WLL 5T | Size: 125 | 1-sling: Straight 5000, Choked 4000, Lift 0-7° 10000, Lift 7-45° 7000, Lift 45-60° 5000 | 2-slings: Straight 7000, Choked 5600, Straight 5000, Choked 4000
• WLL 6T | Size: 150 | 1-sling: Straight 6000, Choked 4800, Lift 0-7° 12000, Lift 7-45° 8400, Lift 45-60° 6000 | 2-slings: Straight 8400, Choked 6720, Straight 6000, Choked 4800
• WLL 8T | Size: 200 | 1-sling: Straight 8000, Choked 6400, Lift 0-7° 16000, Lift 7-45° 11200, Lift 45-60° 8000 | 2-slings: Straight 11200, Choked 8960, Straight 8000, Choked 6400
• WLL 10T | Size: 250 | 1-sling: Straight 10000, Choked 8000, Lift 0-7° 20000, Lift 7-45° 14000, Lift 45-60° 10000 | 2-slings: Straight 14000, Choked 11200, Straight 10000, Choked 8000
• WLL 12T | Size: 300 | 1-sling: Straight 12000, Choked 9600, Lift 0-7° 24000, Lift 7-45° 16800, Lift 45-60° 12000 | 2-slings: Straight 16800, Choked 13440, Straight 12000, Choked 9600

Standards
ISO4878; EN1492-1/2:2000; ASME B30.9-2003; EN12195-2:2000

Warning

• Failure to comply with this warning may result in serious load damage and death or injury.
• Use only if trained.
• Can fail if damaged, misused or overloaded.
• Inspect sling for damage before each use.
• Always protect sling webbing from sharp edges of load.
• Do not attempt to use sling above rated lifting capacity.
• Do not use sling if rated capacity tag is removed or unreadable.
• Avoid acid, alkali and sunlight.
• Do not tie knots in sling webbing as strength is greatly reduced.
• Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.

Technical specifications

• Model / Series: Flat Webbing Sling
• Product title (variant): 10 Ton Flat Webbing Sling Orange
• Material options: Polyester, Nylon, Polypropylene
• Color: Orange (this variant)
• Safety factor: up to 8:1
• Standards: ISO4878; EN1492-1/2:2000; ASME B30.9-2003; EN12195-2:2000
• Working Load Limits (examples by nominal WLL): see Parameter list above for values from 1T to 12T with corresponding widths and angle/installation multipliers
• Length: customizable to specific needs
