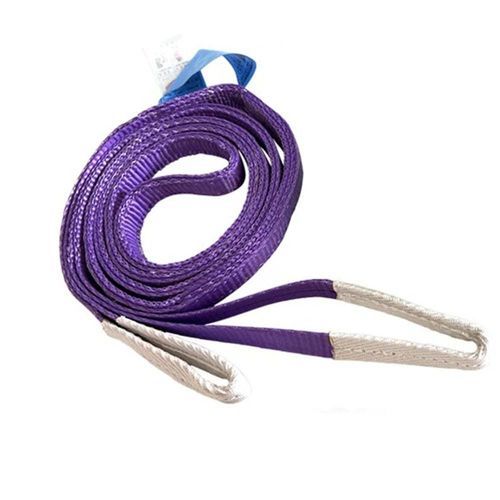

Flat sling

strap2-pointnylon

Product Description
Polyester flat webbing sling, also called duplex eye-eye webbing sling. Made from polyester (also available in nylon or polypropylene). Safety factors available: 5:1, 6:1, 7:1, 8:1. Complies with GS and CE safety requirements. Custom lengths and color coding available for quick identification of capacity.

Introduction

• Working Load Limit (WLL): 1000 kg.
• Width: 25 / 30 / 50 mm.
• According to EN1492-1:2000, ASME B30.9, AS1353-1.
• Strong, flexible and lightweight construction.
• Polyester material with high abrasion resistance.
• Safety factor options: 5:1, 6:1, 7:1, 8:1.
• Reinforced lifting eyes.
• Available lengths: 1 m to 20 m (custom lengths possible).
• Complies with GS and CE safety requirements.
• Each sling is proof tested, individually serial numbered, tagged and supplied with a Test Certificate.

Parameter (table)
Size/Color | Width (mm) | Values for different configurations (sequence corresponds to factor row below)
Factor row: 1.0, 0.8, 2.0, 1.4, 1.0, 1.4, 1.12, 1.0, 0.8
WLL 1T | Width 30 mm | Values: 1000, 800, 2000, 1400, 1000, 1400, 1120, 1000, 800
WLL 2T | Width 50 mm | Values: 2000, 1600, 4000, 2800, 2000, 2800, 2240, 2000, 1600
WLL 3T | Width 75 mm | Values: 3000, 2400, 6000, 4200, 3000, 4200, 3360, 3000, 2400
WLL 4T | Width 100 mm | Values: 4000, 3200, 8000, 5600, 4000, 5600, 4480, 4000, 3200
WLL 5T | Width 125 mm | Values: 5000, 4000, 10000, 7000, 5000, 7000, 5600, 5000, 4000
WLL 6T | Width 150 mm | Values: 6000, 4800, 12000, 8400, 6000, 8400, 6720, 6000, 4800
WLL 8T | Width 200 mm | Values: 8000, 6400, 16000, 11200, 8000, 11200, 8960, 8000, 6400
WLL 10T | Width 250 mm | Values: 10000, 8000, 20000, 14000, 10000, 14000, 11200, 10000, 8000
WLL 12T | Width 300 mm | Values: 12000, 9600, 24000, 16800, 12000, 16800, 13440, 12000, 9600

Standards
ISO4878, EN1492-1/2:2000, ASME B30.9-2003, EN12195-2:2000

Warning

• Failure to comply with this warning may result in serious load damage and death or injury.
• Use only if trained.
• Can fail if damaged, misused or overloaded.
• Inspect sling for damage before each use.
• Always protect sling webbing from sharp edges of load.
• Do not attempt to use sling above rated lifting capacity.
• Do not use sling if rated capacity tag is removed or unreadable.
• Avoid acid, alkali and sunlight.
• Do not tie knots in sling webbing as strength is greatly reduced.
• Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear, or other defects.

Technical specifications

• Material: Polyester (also available in Nylon, Polypropylene).
• Rated WLL (example product): 1 Ton (1000 kg).
• Available widths: 25 mm, 30 mm, 50 mm (larger widths up to 300 mm for higher capacities).
• Safety factors available: 5:1, 6:1, 7:1, 8:1.
• Length range: 1 m to 20 m (custom lengths available).
• Features: strong, flexible, lightweight, high abrasion resistance, reinforced lifting eyes.
• Each sling proof tested, individually serial numbered, tagged and supplied with Test Certificate.
• Standards compliance: ISO4878, EN1492-1/2:2000, ASME B30.9-2003, EN12195-2:2000.
