Flat sling

2-point1-pointpolyester

Overview

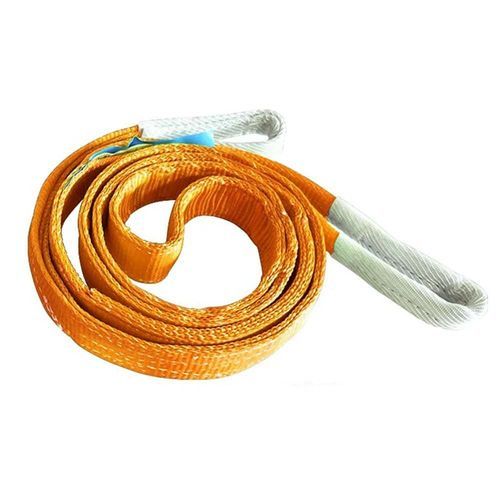

This flat webbing sling is an industrial-grade duplex eye-to-eye lifting sling made of polyester. Rated up to 12 tonnes, it is supplied in orange and is available with multiple safety factors and customizable lengths to suit specific lifting requirements.

Technical specifications

• Product type: Flat webbing sling (Duplex eye-to-eye).
• Material: Polyester.
• Color: Orange.
• Safety factors available: 5:1, 6:1, 7:1, 8:1.
• Widths / typical WLL range: 30 mm (1T) up to 300 mm (12T) corresponding to WLL ratings from 1 t to 12 t.
• Configurations: Single webbing (straight, choked, angled lifts) and two-webbing configurations with defined WLLs per configuration and angle.

Load capacity summary
Working Load Limits (WLL) vary by sling width, configuration and lift angle. Example values for a 12 t rated sling (width 300 mm): straight lift 12,000 kg; choked lift 9,600 kg; basket (approx. 0–7°) up to 24,000 kg. For other capacities the width-to-WLL mapping is 30 mm = 1 t, 50 mm = 2 t, 75 mm = 3 t, 100 mm = 4 t, 125 mm = 5 t, 150 mm = 6 t, 200 mm = 8 t, 250 mm = 10 t, 300 mm = 12 t. Refer to supplier parameter data for full angle-specific values and dual-sling configurations.

Standards & compliance

• ISO 4878
• EN 1492-1/2:2000
• ASME B30.9-2003
• EN 12195-2:2000

Safety & warnings

• Failure to comply may result in serious injury or death and/or load damage.
• Use only if properly trained.
• Do not use if damaged, overloaded or misused.
• Inspect sling before each use for cuts, heat or chemical damage and excessive wear.
• Protect webbing from sharp edges; use edge protection when required.
• Do not exceed the rated lifting capacity listed on the sling tag.
• Do not use if the capacity tag is removed or unreadable.
• Avoid prolonged exposure to acids, alkalis and direct sunlight.
• Do not tie knots in the webbing; knots greatly reduce strength.

Ordering & options

• Lengths: customizable to order.
• Available safety factors: 5:1, 6:1, 7:1, 8:1.
• Color shown: Orange (other colors may be available on request).

Typical applications

• General industrial lifting and rigging.
• Hoisting machinery, containers and structural elements.
• Worksites requiring slings compliant with ISO/EN/ASME standards.
