Flat sling

2-pointpolyesterlashing

Product Overview

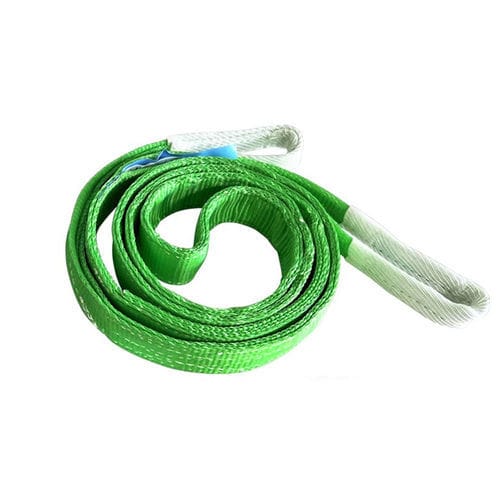

Flat webbing sling (Duplex eye-eye webbing sling) is a polyester lifting sling designed for industrial rigging and cargo handling. Available in green variant and length options to suit on-site requirements. Offered with safety factor choices 5:1, 6:1, 7:1 or 8:1 and manufactured to comply with common industry safety standards. Ideal for general lifting, positioning and load securing tasks where a lightweight, flexible sling is required.

Parameters

• WLL 1T — Width 30 mm — 1 sling straight: 1000 kg; 1 sling choked: 800 kg; 2 slings straight: 2000 kg; 2 slings choked: 1400 kg
• WLL 2T — Width 50 mm — 1 sling straight: 2000 kg; 1 sling choked: 1600 kg; 2 slings straight: 4000 kg; 2 slings choked: 2800 kg
• WLL 3T — Width 75 mm — 1 sling straight: 3000 kg; 1 sling choked: 2400 kg; 2 slings straight: 6000 kg; 2 slings choked: 4200 kg
• WLL 4T — Width 100 mm — 1 sling straight: 4000 kg; 1 sling choked: 3200 kg; 2 slings straight: 8000 kg; 2 slings choked: 5600 kg
• WLL 5T — Width 125 mm — 1 sling straight: 5000 kg; 1 sling choked: 4000 kg; 2 slings straight: 10000 kg; 2 slings choked: 7000 kg
• WLL 6T — Width 150 mm — 1 sling straight: 6000 kg; 1 sling choked: 4800 kg; 2 slings straight: 12000 kg; 2 slings choked: 8400 kg
• WLL 8T — Width 200 mm — 1 sling straight: 8000 kg; 1 sling choked: 6400 kg; 2 slings straight: 16000 kg; 2 slings choked: 11200 kg
• WLL 10T — Width 250 mm — 1 sling straight: 10000 kg; 1 sling choked: 8000 kg; 2 slings straight: 20000 kg; 2 slings choked: 14000 kg
• WLL 12T — Width 300 mm — 1 sling straight: 12000 kg; 1 sling choked: 9600 kg; 2 slings straight: 24000 kg; 2 slings choked: 16800 kg

Standards
ISO 4878; EN 1492-1/2:2000; ASME B30.9-2003; EN 12195-2:2000

Warning

• Failure to follow warnings may result in serious injury or death and load loss.
• Use only by trained personnel.
• Do not use if sling is damaged, cut, burnt or shows chemical degradation.
• Inspect sling before each use.
• Protect webbing from sharp edges with padding or edge protectors.
• Do not exceed rated Working Load Limit.
• Do not use if capacity tag is missing or unreadable.
• Avoid prolonged exposure to acids, alkalis and direct sunlight.
• Do not tie knots in the sling webbing.

Technical specifications

• Product type: Flat webbing sling (Duplex eye-eye)
• Material: Polyester
• Color: Green (this listing: green variant)
• Safety factor options: 5:1, 6:1, 7:1, 8:1
• Lengths: selectable per customer requirements
• Available WLL and typical widths: 1T (30 mm), 2T (50 mm), 3T (75 mm), 4T (100 mm), 5T (125 mm), 6T (150 mm), 8T (200 mm), 10T (250 mm), 12T (300 mm)
• Representative capacities: see parameter list for straight and choked examples
• Applications: general lifting, rigging, cargo handling, machinery positioning
• Maintenance: inspect before use; store dry and away from sunlight and chemicals
