Flat sling

polypropylenenylonpolyester

Introduction
Flat webbing sling for industrial lifting applications. Manufactured from Polyester, Nylon or Polypropylene. Available with safety factors of 5:1, 6:1, 7:1 and 8:1 and compliant with GS and CE requirements. Length and colour can be customised to suit specific rigging needs.

Parameter (table)
Size | Width (mm) | Working Load Limit with 1 webbing sling (kg) (Straight | Choked | Lift 0-7° | Lift 7-45° | Lift 45-60°) | Working Load Limit with 2 webbing sling (kg) (Straight | Choked | Lift 45° | Choked)
WLL 1T | 30 | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800
WLL 2T | 50 | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600
WLL 3T | 75 | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400
WLL 4T | 100 | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200
WLL 5T | 125 | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000
WLL 6T | 150 | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800
WLL 8T | 200 | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400
WLL 10T | 250 | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000
WLL 12T | 300 | 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600

Standards

• ISO4878
• EN1492-1/2:2000
• ASME B30.9-2003
• EN12195-2:2000

Warning

• Failure to comply with these warnings may result in serious damage, injury or death.
• Use only if trained in lifting and rigging procedures.
• Sling can fail if damaged, misused or overloaded.
• Inspect sling for damage before each use.
• Protect sling webbing from sharp edges and abrasion.
• Do not exceed the rated lifting capacity.
• Do not use sling if the capacity tag is removed or unreadable.
• Avoid exposure to strong acids, alkalis and prolonged sunlight.
• Do not tie knots in the webbing; knots greatly reduce strength.
• Remove from service if there are cuts, heat or chemical damage, excessive wear, or other defects.

Characteristics / Technical specifications

• Product type: Flat webbing sling
• Materials: Polyester, Nylon, Polypropylene
• Available capacities (WLL): 1T, 2T, 3T, 4T, 5T, 6T, 8T, 10T, 12T
• Widths and corresponding working load limits: see parameter table above
• Safety factors available: 5:1, 6:1, 7:1, 8:1
• Standards: ISO4878; EN1492-1/2:2000; ASME B30.9-2003; EN12195-2:2000

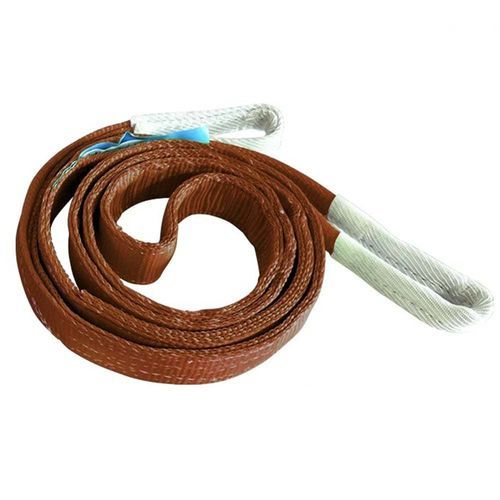

• Colour shown: Brown (custom colours available)
• Customisable length
• Intended use: industrial lifting and rigging
