Round sling

fabricendlesspolyester

Overview

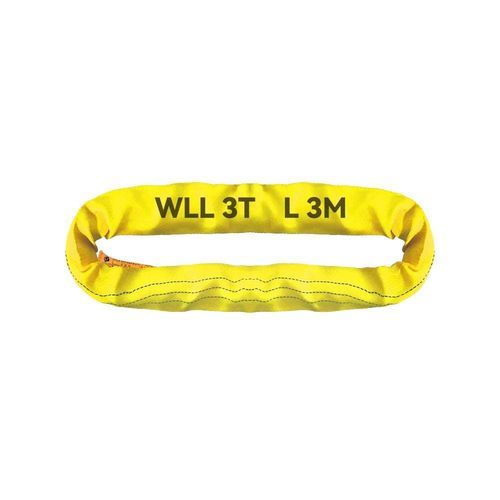

Polyester round lifting sling (endless), yellow. Designed to lift glass panels or coated materials without scratching. Continuous hank core distributes weight evenly across lengths from 1 to 10 m. Soft polyester exterior prevents surface marring. Custom lengths available.

Parameter
Header (columns shown as sequences of values corresponding to the table on the product page).
Factor: 1.0, 0.8, 2.0, 1.4, 1.0, 0.7, 0.5, 1.4, 1.12, 1.0, 0.8
WLL 1T: 1.0, 0.8, 2.0, 1.4, 1.0, 0.7, 0.5, 1.4, 1.12, 1.0, 0.8
WLL 2T: 2.0, 1.6, 4.4, 2.8, 2.0, 1.4, 1.0, 2.8, 2.24, 2.0, 1.6
WLL 3T: 3.0, 2.4, 6.1, 4.2, 3.0, 2.1, 1.5, 4.2, 3.36, 3.0, 2.4
WLL 4T: 4.0, 3.2, 8.0, 5.6, 4.0, 2.8, 2.0, 5.6, 4.48, 4.0, 3.2
WLL 5T: 5.0, 4.0, 10, 7.1, 5.0, 3.5, 2.5, 7.1, 5.60, 5.0, 4.0
WLL 6T: 6.0, 4.8, 12, 8.4, 6.0, 4.2, 3.0, 8.4, 6.72, 6.0, 4.8
WLL 8T: 8.0, 6.4, 16, 11.2, 8.0, 5.6, 4.0, 11.2, 8.96, 8.0, 6.4
WLL 10T: 10, 8.0, 20, 14.0, 10, 7.0, 5.0, 14.0, 11.20, 10, 8.0
WLL 12T: 12, 9.6, 24, 16.8, 12, 8.4, 6.0, 16.8, 13.44, 12, 9.6
WLL 15T: 15, 12, 30, 21.0, 15, 10.5, 7.5, 21.0, 16.80, 15, 12
WLL 20T: 20, 16, 40, 28.0, 20, 14.0, 10.0, 28.0, 22.40, 20, 16
WLL 30T: 30, 24, 60, 42.0, 30, 21.0, 15.0, 42.0, 33.60, 30, 24
WLL 50T: 50, 40, 100, 70.0, 50, 35.0, 25.0, 70.0, 56.00, 50, 40
WLL 60T: 60, 48, 120, 84.0, 60, 42.0, 30.0, 84.0, 67.20, 60, 48
WLL 80T: 80, 64, 160, 112.0, 80, 56.0, 40.0, 112.0, 89.60, 80, 64
WLL 100T: 100, 80, 200, 140.0, 100, 70.0, 50.0, 140.0, 112.00, 100, 80

Standards & Notes
TUV-CE certificate available for most products; ISO9001 and ISO14001. Official quality test reports provided for products. Samples available (buyer pays express). OEM/ODM service available (logo can be added). Complete manufacturing inspection and testing procedures in place.

Technical specifications

• Product type: Polyester round lifting sling, endless (round sling)
• Color: Yellow
• Rated model on this page: 3 Ton working load limit (WLL 3T)
• Material: Polyester (soft exterior)
• Core: Continuous hank core for even weight distribution
• Recommended lengths: 1–10 m (custom lengths available)
• Suitable for lifting glass panels and coated materials without scratching
• Available certificates: TUV-CE (for most products), ISO9001, ISO14001
• Sample & OEM/ODM: samples available (express cost borne by buyer); logo customization available
