Fastening strap

polyesterwoventextile

Product Overview

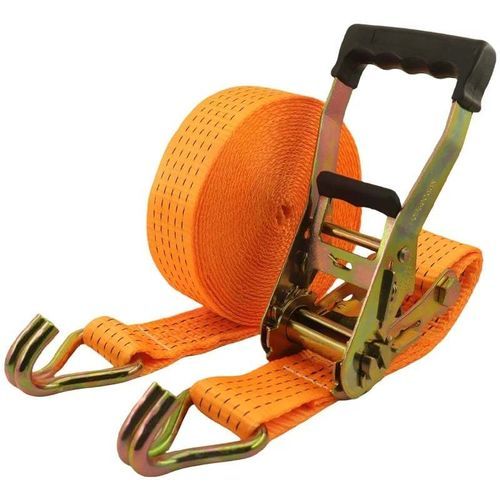

This listing covers the 1" ratchet tie-down equipped with a Double J wire hook. The strap is built on polyester webbing and is offered in multiple lengths and color options. Wire hooks are zinc-plated for corrosion resistance and the ratchet mechanism is available with different handle options to suit industrial load-securing applications.

Introduction

• Size (inch): 1" (other sizes also available)
• Ratchet handle / Hook options: AL handle / Plastic handle / Double J Hook
• Hook finish: Yellow zinc plated
• Webbing colors: Yellow / Orange / Blue
• Webbing material: Polyester
• Typical webbing length / width: 27–30 Feet / 1" (approx. 25 mm)

Parameters (table)
Representative size rows (A, B, C in mm):
1" | 1000KG/2200LBS | A: 47 | B: 27 | C: 6.5
1" | 800KG/1760LBS | A: 35 | B: 27 | C: 6.5
1" | 680KG/1500LBS | A: 47 | B: 28 | C: 6.5
1" | 800KG/1760LBS | A: 47 | B: 28 | C: 6

Standards / Main Advantages

• Industrial-grade ratchet mechanism suitable for cargo securing
• Zinc-plated welded wire Double J hook
• Long, wide-handled ratchet options with zinc coating
• Custom strap configurations available on request

Technical specifications

• Available sizes: multiple widths including 4", 3", 2", 1.5", 1 1/16", 1"
• Breaking strengths: up to 10000KG/22000LBS for larger sizes; common values include 5000KG/11000LBS, 3000KG/6600LBS, 1500KG/3300LBS, 1000KG/2200LBS, 800KG/1760LBS, 680KG/1500LBS
• Handle/hook options: Aluminum handle, Plastic handle, Double J hook
• Hook finish: yellow zinc plated for improved corrosion resistance
• Webbing: polyester; available colors YELLOW, ORANGE, BLUE
• Typical webbing length and width: 27–30 ft long, 1" (approx. 25 mm) for the 1" variant; other lengths and widths per size
• Dimensional parameters (A, B, C in mm) are provided per size; consult the parameter table for exact values
• Custom straps and marking options available upon request
