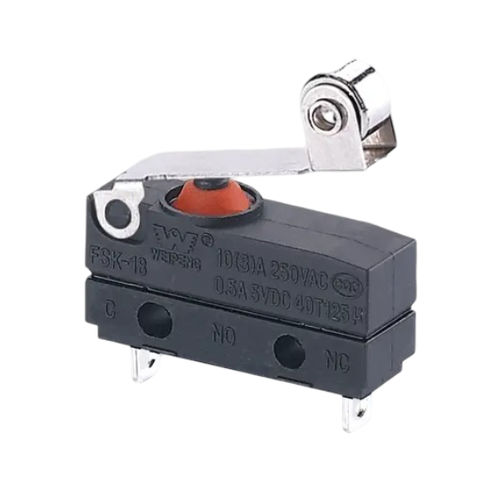

Lever micro-switch FSK-18-T-002
single-poleULCEI 60947

Lever micro-switch - FSK-18-T-002 - Yueqing Tongda Wire Electric Factory - single-pole / UL / CEI 60947
Lever micro-switch - FSK-18-T-002 - Yueqing Tongda Wire Electric Factory - single-pole / UL / CEI 60947
Lever micro-switch - FSK-18-T-002 - Yueqing Tongda Wire Electric Factory - single-pole / UL / CEI 60947 - image - 2
Lever micro-switch - FSK-18-T-002 - Yueqing Tongda Wire Electric Factory - single-pole / UL / CEI 60947 - image - 3
Add to favorites
Compare this product
Go to the Yueqing Tongda Wire Electric Factory website for more information

Characteristics

Type
lever
Number of poles
single-pole
Protection level
UL
Norms
CEI 60947, CQC
Other characteristics
DC, AC, micro
Primary current

0.1 A, 5 A, 10 A

Voltage

5 V, 36 V, 125 V, 250 V

Diameter / length

20.2 mm
(0.8 in)

Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 105 °C
(221 °F)

Width

6.5 mm
(0.3 in)

Height

11.6 mm
(0.5 in)

Description

Fsk-18 High Current Micro Switch for Car Parts Current: 0.1A/ 5(2)A/ 10(3)A Voltage:AC 125V/250V, DC 5V/36V Approved: UL,cUL(CSA),VDE,ENEC,CQC
