SPDT micro-switch FSK-14-5A-007-TD1.125

C22.2CQCC-US UL

Product Overview

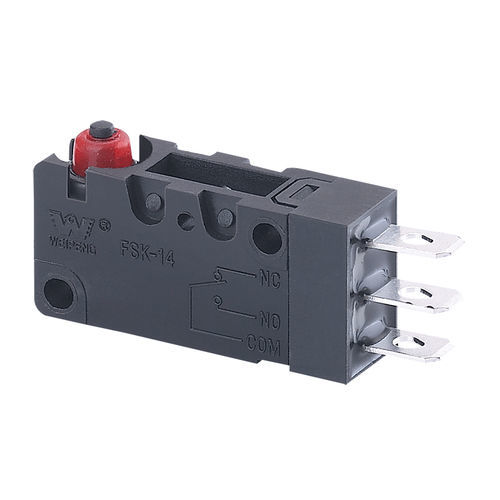

Micro switch FSK-14-5A-007-TD1.125. Rated currents 5(2)A and 10(3)A with contact electrical rating 0.1A 250VAC. Suitable for AC 125V/250V and DC 30V. Certified: UL, cUL (CSA), VDE, ENEC, CQC.

Size chart
Refer to the product size chart image for dimensional details and mounting points.

Switch Technical Characteristics

• 1 - (Electrical Rating): 0.1A 250VAC
• 2 - (Operating Force): 1.0 ~ 2.5N
• 3 - (Contact Resistance): ≤ 300mΩ
• 4 - (Insulation Resistance): ≥ 100MΩ (500VDC)
• 5 - (Dielectric Voltage): Between non-connected terminals: 500V / 0.5mA / 60s; Between terminals and metal frame: 1500V / 0.5mA / 60s
• 6 - (Electrical Life): ≥ 50,000 cycles
• 7 - (Mechanical Life): ≥ 100,000 cycles
• 8 - (Operating Temperature): -25 ~ 105°C
• 9 - (Operating Frequency): Electrical: 15 cycles/min; Mechanical: 60 cycles/min
• 10 - (Vibration Proof): Frequency: 10 ~ 55Hz; Amplitude: 1.5mm; Three directions
• 11 - (Solder Ability): ≥ 80% of immersed part covered with solder; Soldering temperature: 235±5°C; Immersion time: 2 ~ 3s
• 12 - (Solder Heat Resistance): Dip soldering: 260±5°C 5±1s; Manual soldering: 300±5°C 2 ~ 3s
• 13 - (Test Conditions): Ambient Temp: 20±5°C; Relative Humidity: 65±5% RH; Air Pressure: 86 ~ 106 kPa

Specifications

• Electrical rating: 0.1A 250VAC
• Rated currents: 5(2)A and 10(3)A
• Operating force: 1.0–2.5 N
• Contact resistance: ≤ 300 mΩ
• Insulation resistance: ≥ 100 MΩ (500 VDC)
• Dielectric strength: 500 V (between terminals), 1500 V (between terminals and metal frame)
• Electrical life: ≥ 50,000 cycles
• Mechanical life: ≥ 100,000 cycles
• Operating temperature: -25 to 105 °C
• Vibration: 10–55 Hz, 1.5 mm amplitude, three directions
• Solderability: ≥ 80% immersion coverage; soldering and heat-resistance parameters as specified
• Test conditions: 20±5°C, 65±5% RH, 86–106 kPa
