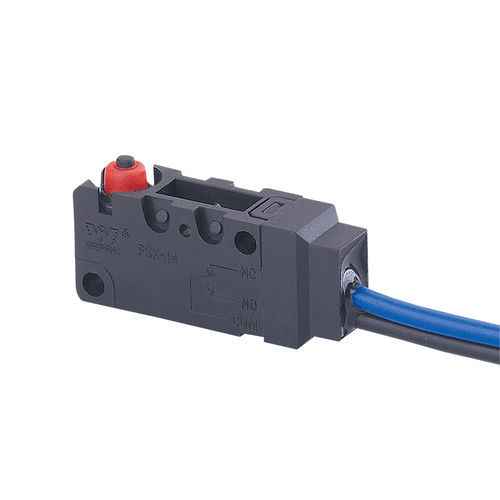

Lever micro-switch FSK-14-1X-5A-030-TD1.125
SPSTwaterproofIP67

Lever micro-switch - FSK-14-1X-5A-030-TD1.125 - Yueqing Tongda Wire Electric Factory - SPST / waterproof / IP67
Lever micro-switch - FSK-14-1X-5A-030-TD1.125 - Yueqing Tongda Wire Electric Factory - SPST / waterproof / IP67
Add to favorites
Compare this product
Go to the Yueqing Tongda Wire Electric Factory website for more information

Characteristics

Type
lever
Number of poles
SPST
Protection level
UL, waterproof, IP67
Norms
CQC, C-US UL
Other characteristics
AC, snap-action, reset, sealed, micro
Primary current

5 A, 10 A

Voltage

125 V, 250 V

Diameter / length

37.1 mm
(1.5 in)

Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 85 °C
(185 °F)

Width

10.3 mm
(0.4 in)

Height

15.9 mm
(0.6 in)

Description

Product Overview
  • Model: FSK-14-1X-5A-030-TD1.125 (FSK-14 Big Series)
  • Rated current: 5(2)A / 10(3)A
  • Rated voltage: AC 125V / 250V, DC 30V
  • Certifications: UL, cUL (CSA), VDE, ENEC, CQC
  • Typical applications: control panels, instrumentation and electrical appliances requiring compact snap-action switching


Size chart
Size chart image available on the product page.

Switch technical Characteristics
  • Electrical rating (detailed): 0.1A @ 250VAC
  • Operating force: 1.0–2.5 N
  • Contact resistance: ≤ 300 mΩ
  • Insulation resistance: ≥ 100 MΩ (500 VDC)
  • Dielectric voltage: 500 V (0.5 mA / 60 s) between non-connected terminals; 1500 V (0.5 mA / 60 s) between terminals and metal frame
  • Electrical life: ≥ 50,000 cycles
  • Mechanical life: ≥ 100,000 cycles
  • Operating temperature: -25 to 105 °C
  • Operating frequency: electrical 15 cycles/min; mechanical 60 cycles/min
  • Vibration resistance: 10–55 Hz, 1.5 mm amplitude, three directions
  • Solderability: ≥ 80% of immersed parts must be covered with solder; wave solder: 235±5 °C, immersion time 2–3 s
  • Solder heat resistance: dip soldering 260±5 °C, 5±1 s; manual soldering 300±5 °C, 2–3 s
  • Test conditions: ambient temperature 20±5 °C; relative humidity 65±5% RH; air pressure 86–106 kPa


Technical specifications
  • Model: FSK-14-1X-5A-030-TD1.125
  • Current: 5(2)A / 10(3)A
  • Voltage: AC 125V / 250V; DC 30V
  • Certifications: UL, cUL (CSA), VDE, ENEC, CQC
  • Electrical rating (detailed): 0.1A @ 250VAC
  • Operating force: 1.0–2.5 N
  • Contact resistance: ≤ 300 mΩ
  • Insulation resistance: ≥ 100 MΩ (500 VDC)
  • Dielectric voltage: 500 V/0.5 mA/60 s (between non-connected terminals); 1500 V/0.5 mA/60 s (between terminals and metal frame)
  • Electrical life: ≥ 50,000 cycles
  • Mechanical life: ≥ 100,000 cycles
  • Operating temperature: -25 to 105 °C
  • Operating frequency: electrical 15 cycles/min; mechanical 60 cycles/min
  • Vibration: 10–55 Hz, 1.5 mm amplitude
  • Soldering / Heat resistance: dip soldering 260±5 °C 5±1 s; manual soldering 300±5 °C 2–3 s; solderability ≥ 80% coverage; wave solder: 235±5 °C 2–3 s
  • Test conditions: 20±5 °C; 65±5% RH; 86–106 kPa
