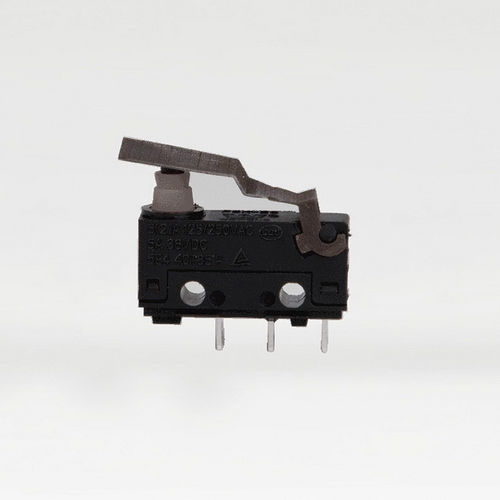

Lever micro-switch FSK-26-D-004SPDTwaterproofwith sealed box
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- SPDT
- Protection level
- waterproof, with sealed box, IP67
- Norms
- CQC, C-US UL
- Other characteristics
- DC, plastic, snap-action, reset, miniature, micro
- Primary current
4 A
- Voltage
30 V
- Diameter / length
20 mm
(0.8 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)- Width
6.4 mm
(0.3 in)- Height
9.3 mm
(0.4 in)
Description
Product Subtitle
Waterproof micro switch for wet environments; compact design, available with 2-pin, 3-pin or wire leads.
Overview
The FSK-26-D-004 waterproof micro switch is designed for reliable switching in wet or humid conditions. It features sealed construction to prevent moisture ingress and maintain consistent electrical contact. With a small footprint and low actuation force, it is suitable for industrial control panels, outdoor equipment and instrumentation where IP67 protection is required.
Key features
Technical specifications
Waterproof micro switch for wet environments; compact design, available with 2-pin, 3-pin or wire leads.
Overview
The FSK-26-D-004 waterproof micro switch is designed for reliable switching in wet or humid conditions. It features sealed construction to prevent moisture ingress and maintain consistent electrical contact. With a small footprint and low actuation force, it is suitable for industrial control panels, outdoor equipment and instrumentation where IP67 protection is required.
Key features
- Series: FSK Waterproof Micro Switch
- Mechanical life: About 1,000,000 cycles
- Electrical life: About 50,000 cycles
- Operation force: 1.5 N max
- Operation position: 12.6 ± 1 mm
- Operation travel: 1.8 - 2.0 mm
- Terminals: 2-pin / 3-pin / Wires
- Electrical rating: 4A 30V DC 40T85
- Protection grade: IP67
Technical specifications
- Series: FSK Waterproof Micro Switch
- Mechanical life: About 1,000,000 cycles
- Electrical life: About 50,000 cycles
- Operation force: 1.5 N max
- Operation position: 12.6 ± 1 mm
- Operation travel: 1.8 - 2.0 mm
- Terminals: 2-pin / 3-pin / Wires
- Electrical rating: 4A 30V DC 40T85
- Protection grade: IP67
