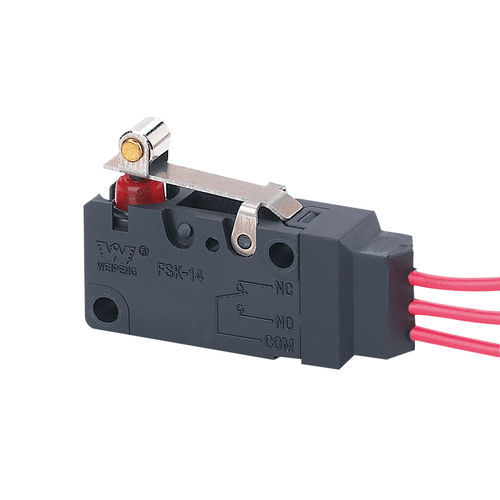

Lever micro-switch FSK-14-5A-035

SPDTwaterproofrugged

Product Overview
The FSK-14-5A-035 is a waterproof micro limit switch with a momentary conventional lever and a 200 mm prewired cable. It is offered with typical current options up to 10A at 125VAC/250VAC and is suitable for applications requiring a sealed, compact actuator for position detection and control.

Basic Ratings & Approvals

• Current options referenced: 5(2)A / 10(3)A
• Voltage: AC 125V / 250V, DC 30V
• Approvals: UL, cUL (CSA), VDE, ENEC, CQC

Switch Technical Characteristics

• 1 — Electrical Rating — 0.1A 250VAC
• 2 — Operating Force — 1.0 ~ 2.5 N
• 3 — Contact Resistance — ≤ 300 mΩ
• 4 — Insulation Resistance — ≥ 100 MΩ (500 VDC)
• 5 — Dielectric Voltage — Between non-connected terminals: 500 V / 0.5 mA / 60 s; Between terminals and metal frame: 1500 V / 0.5 mA / 60 s
• 6 — Electrical Life — ≥ 50,000 cycles
• 7 — Mechanical Life — ≥ 100,000 cycles
• 8 — Operating Temperature — -25 ~ 105 °C
• 9 — Operating Frequency — Electrical: 15 cycles/min; Mechanical: 60 cycles/min
• 10 — Vibration Proof — Frequency: 10 ~ 55 Hz; Amplitude: 1.5 mm; Direction: three axes
• 11 — Solderability — >80% of immersed part covered with solder; Soldering temp: 235 ± 5 °C; Immersion time: 2 ~ 3 s
• 12 — Solder Heat Resistance — Dip soldering: 260 ± 5 °C for 5 ± 1 s; Manual soldering: 300 ± 5 °C for 2 ~ 3 s
• 13 — Test Conditions — Ambient: 20 ± 5 °C; Relative humidity: 65 ± 5 % RH; Air pressure: 86 ~ 106 kPa

Environmental guidance
Environmental conditions significantly affect the choice of a waterproof micro switch. Identify contaminants, immersion liquids, and expected operating temperature range for the application. For harsh or critical environments select a sealed switch rated for the required temperature range. Note that higher-reliability micro switches can operate from approximately -54 °C to 178 °C. Applications with larger load requirements (e.g. liquid-level switches driving pumps) should use switches rated for higher currents such as 20A or 25A at 125VAC or 250VAC.

Technical specifications

• Model: FSK-14-5A-035 (part of FSK-14 series)
• Typical currents referenced on datasheet: 5(2)A, 10(3)A; example ratings up to 10A at 125VAC/250VAC
• Electrical rating (test listing): 0.1A 250VAC
• Operating force: 1.0 ~ 2.5 N
• Contact resistance: ≤ 300 mΩ
• Insulation resistance: ≥ 100 MΩ (500 VDC)
• Dielectric strength: 500 V (between circuits), 1500 V (to metal frame) under specified test conditions
• Electrical life: ≥ 50,000 cycles; Mechanical life: ≥ 100,000 cycles
• Operating temperature: -25 °C to 105 °C
• Vibration: 10 ~ 55 Hz, amplitude 1.5 mm
• Solderability and solder heat resistance details for dip and manual soldering provided
• Test ambient conditions: 20 ± 5 °C; 65 ± 5 % RH; air pressure 86 ~ 106 kPa
• Certifications: UL, cUL (CSA), VDE, ENEC, CQC
