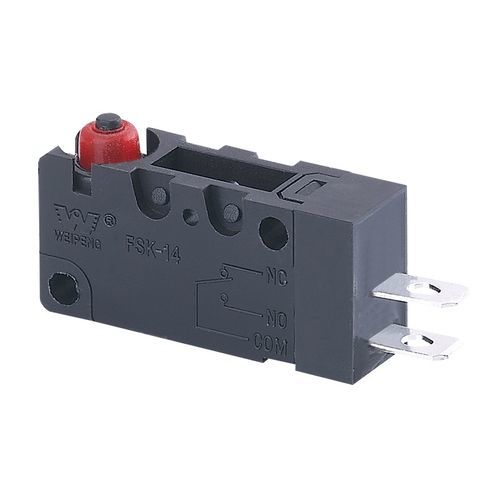

Lever switch FSK-14-1X-5A-006-TD1

SPSTwaterproofIP67

Product overview
FSK-14-1X-5A-006-TD1 is a miniature solderable switch designed for compact electrical control applications. It is offered with rated current options 5(2)A and 10(3)A and rated voltages AC 125V / 250V and DC 30V. The switch is intended for applications requiring a small footprint and reliable switching performance.

Key specifications

• Model: FSK-14-1X-5A-006-TD1
• Rated current examples: 5(2)A, 10(3)A
• Rated voltage: AC 125V / 250V; DC 30V
• Typical electrical rating example: 0.1A 250VAC
• Operating force: 1.0 ~ 2.5 N
• Contact resistance: ≤ 300 mΩ
• Insulation resistance: ≥ 100 MΩ (500 VDC)
• Dielectric voltage: 500 V between terminals; 1500 V between terminals and metal frame

Technical characteristics

• Electrical rating (example): 0.1A 250VAC
• Operating force: 1.0 ~ 2.5 N
• Contact resistance: ≤ 300 mΩ
• Insulation resistance: ≥ 100 MΩ (at 500 VDC)
• Dielectric voltage: 500 V (between non-connected terminals), 1500 V (between terminals and metal frame)
• Electrical life: ≥ 50,000 cycles
• Mechanical life: ≥ 100,000 cycles
• Operating temperature: -25 ~ 105 °C
• Operating frequency: electrical 15 cycles/min; mechanical 60 cycles/min
• Vibration: 10 ~ 55 Hz; amplitude 1.5 mm; three directions, 1 hour each

Soldering and mounting

• Solderability: >80% of immersed part to be covered with solder
• Dip soldering temperature: 235 ± 5 °C; immersion time: 2 ~ 3 s
• Solder heat resistance — Dip soldering: 260 ± 5 °C, 5 ± 1 s
• Solder heat resistance — Manual soldering: 300 ± 5 °C, 2 ~ 3 s

Compliance and ordering

• Approvals: UL, cUL (CSA), VDE, ENEC, CQC
• Size chart: size chart image available on product page
• Recommended test conditions: 20 ± 5 °C, RH 65 ± 5%, air pressure 86 ~ 106 kPa
• Typical applications: industrial control, instrumentation, compact electrical devices
