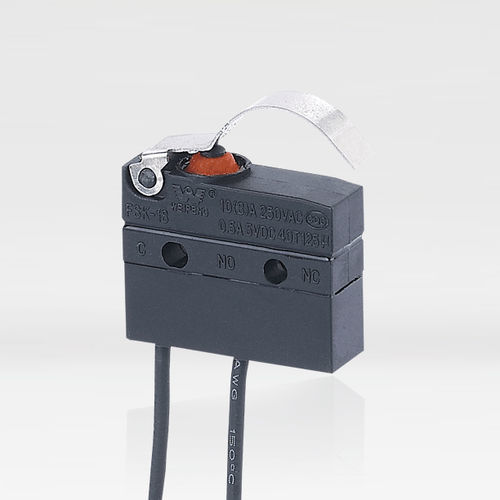

Lever micro-switch FSK-18-D-024SPSTwaterproofIP67
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- SPST
- Protection level
- UL, waterproof, IP67
- Norms
- CQC, ENEC, C-US UL
- Other characteristics
- AC, DC, industrial, action, reset, sealed, miniature, micro
- Primary current
5 A, 10 A
- Voltage
125 V, 250 V
- Diameter / length
19.9 mm
(0.8 in)- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 105 °C
(221 °F)- Width
6.5 mm
(0.3 in)- Height
15.5 mm
(0.6 in)
Description
Product Overview
FSK-18-D-024 — Wired Waterproof Micro Switch. Part of the FSK-18 Mid Series designed for waterproof switching applications where compact size and reliable contact performance are required.
Key Electrical Ratings
Certifications / Approvals
Product Visuals
Specifications / Technical Details
FSK-18-D-024 — Wired Waterproof Micro Switch. Part of the FSK-18 Mid Series designed for waterproof switching applications where compact size and reliable contact performance are required.
Key Electrical Ratings
- Current ratings: 0.1A / 5(2)A / 10(3)A
- Voltage ratings: AC 125V / 250V; DC 36V
Certifications / Approvals
- UL, cUL (CSA), VDE, ENEC, CQC
Product Visuals
- Main product image available and additional product view images provided on the product page.
Specifications / Technical Details
- Model: FSK-18-D-024
- Series: FSK-18 Mid Series
- Type: Wired Waterproof Micro Switch
- Current: 0.1A / 5(2)A / 10(3)A
- Voltage: AC 125V / 250V; DC 36V
- Approvals: UL, cUL (CSA), VDE, ENEC, CQC
- Manufacturer / Brand: Tongda (Yueqing Tongda Wire Electric Factory)
