Lever micro-switch FSK-14-1-5A-037

SPSTwaterproofIP67

Product overview

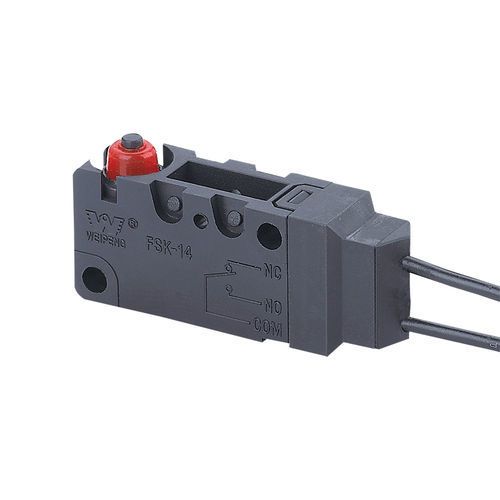

Compact snap-action micro switch FSK-14-1-5A-037 designed for signal switching and control in industrial and appliance applications. Rated examples include 5(2)A / 10(3)A; voltage options AC 125 V / 250 V and DC 30 V. Approvals: UL, cUL (CSA), VDE, ENEC, CQC.

Key technical specifications

• Model: FSK-14-1-5A-037
• Electrical rating examples: 0.1A 250VAC (table data); typical ratings 5(2)A / 10(3)A
• Operating force: 1.0–2.5 N
• Contact resistance: ≤300 mΩ
• Insulation resistance: ≥100 MΩ (500 VDC)
• Dielectric voltage: 500 V (between terminals); 1500 V (between terminals and metal frame)
• Electrical life: ≥50,000 cycles
• Mechanical life: ≥100,000 cycles
• Operating temperature range: -25 to 105 °C
• Operating frequency: electrical 15 cycles; mechanical 60 cycles
• Vibration proof: 10–55 Hz, amplitude 1.5 mm
• Solderability: >80% of immersed part covered; immersion solder temp 235±5 °C (2–3 s)
• Solder heat resistance: dip 260±5 °C (5±1 s); manual 300±5 °C (2–3 s)
• Test conditions: ambient 20±5 °C; relative humidity 65±5% RH; air pressure 86–106 kPa

Applications

• Industrial control systems and instrumentation
• Household appliances and HVAC controls
• Telecommunications and office equipment
• Automotive electronics and auxiliary systems

Compliance & quality

• Approved to standards: UL, cUL (CSA), VDE, ENEC, CQC
• Manufactured and tested under defined environmental and electrical test conditions shown in specifications

Ordering & availability

• Standard model: FSK-14-1-5A-037. Other contact configurations and ratings may be available on request
• Contact supplier for datasheet, lead times, minimum order quantities and samples
