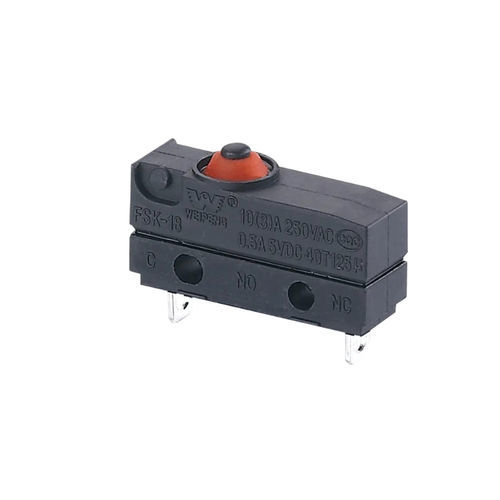

Lever micro-switch FSK-18-T-004single-polewaterproofIP67
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Protection level
- UL, waterproof, IP67
- Norms
- ENEC, CQC
- Other characteristics
- reset, AC, DC, industrial, plastic, snap-action, standard, automatic, miniature, micro, electromechanical
- Primary current
Min.: 0.1 A
Max.: 10 A
- Voltage
125 V, 250 V
- Diameter / length
19.9 mm
(0.8 in)- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 105 °C
(221 °F)- Width
6.5 mm
(0.3 in)- Height
9.7 mm
(0.4 in)
Description
Current: 0.1A/ 0.5A/ 5(2)A/ 10(3)A
Voltage:AC 125V/250V, DC 5V/36V
Approved: UL,cUL(CSA),VDE,ENEC,CQC
1. Sate, reliable basic switch
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4. Long lite, high reliablity
5. A variety of contact terminals
6. A varnety of temperature degree
7. A variety of levers
8. Adopt themosetting plastic or themoplastic
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool
Voltage:AC 125V/250V, DC 5V/36V
Approved: UL,cUL(CSA),VDE,ENEC,CQC
1. Sate, reliable basic switch
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4. Long lite, high reliablity
5. A variety of contact terminals
6. A varnety of temperature degree
7. A variety of levers
8. Adopt themosetting plastic or themoplastic
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool
