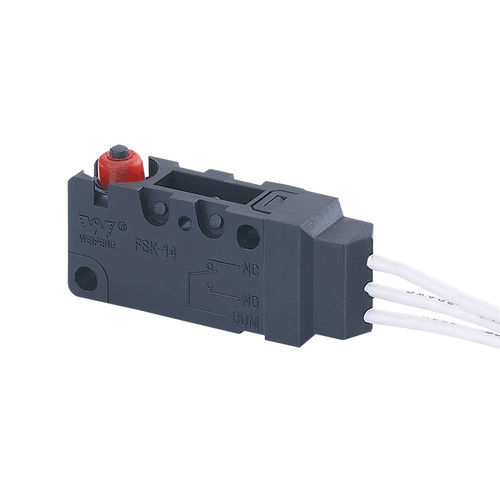

Lever micro-switch FSK-14-5A-027-TD1.125

toggleSPDTwaterproof

Product overview
Waterproof momentary push button switch, model FSK-14-5A-027-TD1.125. Rated currents: 5(2)A / 10(3)A. Rated voltages: AC 125V / 250V, DC 30V. Recognized approvals: UL, cUL (CSA), VDE, ENEC, CQC. Suitable for industrial control panels, instrumentation and equipment requiring sealed tactile switching.

Size chart
Refer to the product size chart image for detailed dimensions and mounting information.

Switch technical characteristics

• 1. Electrical rating: 0.1A 250VAC
• 2. Operating force: 1.0 ~ 2.5 N
• 3. Contact resistance: ≤ 300 mΩ
• 4. Insulation resistance: ≥ 100 MΩ (500 VDC)
• 5. Dielectric voltage: 500 V between non-connected terminals (0.5 mA / 60 s); 1500 V between terminals and metal frame (0.5 mA / 60 s)
• 6. Electrical life: ≥ 50,000 cycles
• 7. Mechanical life: ≥ 100,000 cycles
• 8. Operating temperature: -25 ~ 105 °C
• 9. Operating frequency: electrical 15 cycles; mechanical 60 cycles
• 10. Vibration proof: frequency 10 ~ 55 Hz; amplitude 1.5 mm; tested in three directions
• 11. Solderability: > 80% of immersed part covered with solder. Soldering temperature: 235 ± 5 °C (immersion time 2 ~ 3 s)
• 12. Solder heat resistance: dip soldering 260 ± 5 °C (5 ± 1 s); manual soldering 300 ± 5 °C (2 ~ 3 s)
• 13. Test conditions: ambient temperature 20 ± 5 °C; relative humidity 65 ± 5% RH; air pressure 86 ~ 106 kPa

Product tags

• Waterproof Button
• Waterproof Momentary Switch
• Waterproof Push Button
• Waterproof Push Button Switch
• Waterproof Rocker Switch
• Waterproof Toggle Switch

Technical specifications

• Electrical rating: 0.1A 250VAC
• Operating force: 1.0 ~ 2.5 N
• Contact resistance: ≤ 300 mΩ
• Insulation resistance: ≥ 100 MΩ (500 VDC)
• Dielectric voltage: 500 V between non-connected terminals; 1500 V between terminals and metal frame
• Electrical life: ≥ 50,000 cycles
• Mechanical life: ≥ 100,000 cycles
• Operating temperature: -25 ~ 105 °C
• Operating frequency: electrical 15 cycles; mechanical 60 cycles
• Vibration proof: 10 ~ 55 Hz, amplitude 1.5 mm, three directions
• Solderability: > 80% coverage when immersed; soldering temperature 235 ± 5 °C (2 ~ 3 s)
• Solder heat resistance: dip 260 ± 5 °C (5 ± 1 s); manual 300 ± 5 °C (2 ~ 3 s)
• Test conditions: 20 ± 5 °C, 65 ± 5% RH, 86 ~ 106 kPa
