Process sterilizer

UVcompactknife

Product overview

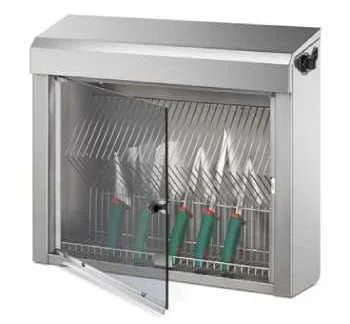

Compact UV sterilizer designed for knives and small cutting tools used in food processing. Constructed from AISI430 stainless steel, the chamber is closed by a smoked Plexiglas door. A removable see-through Plexiglas knives holder facilitates sanitation and allows sterilization without rotating the knives.

Key features

• Removable transparent Plexiglas knives holder for easy handling and cleaning
• Built-in drops-collecting tray in the knives holder (24W version)
• Mercury vapour lamps with wire screen protection (3×8W)
• Safety micro switch: lamps switch on when the door is opened and switch off when closed
• Courtesy lamp (24W model) activates only when main switch is on and timer is set to 0

Technical specifications

• Number of Lamps: 3 × 8 (W)
• Power: 24 Watt
• Voltage: 220 V / 50 Hz
• Timer: 0 to 120 Min
• Knives Capacity: 15–20 Pcs
• Net weight: 17 kg

Recommended applications

• Butcher shops and meat processing lines
• Fish and seafood processing facilities
• Food production areas requiring HACCP-compliant hygiene

Safety & maintenance

• Follow local UV safety regulations and use appropriate PPE when lamps are operational
• Clean stainless-steel surfaces and Plexiglas holder with non-abrasive detergents
• Replace mercury vapour lamps according to schedule and dispose of them following local regulations
