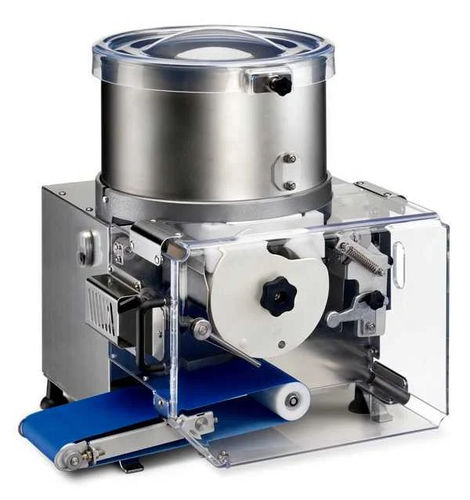

Hamburger forming machine

pattymeat stickautomatic

Description
This automatic forming machine is designed for mass production of hamburgers, patties, round sticks and custom shapes. It handles red and white meats and mixtures with other ingredients, with adjustable portion weights and a productivity of up to 2100 cycles/hour. All models are equipped with a fully extractable patented stainless steel forming chamber; components in contact with product are certified for food contact and comply with HACCP requirements. Some models include an outfeed conveyor that can be connected to automatic packaging systems, facilitating line integration. The design prioritizes hygiene, fast cleaning and simple maintenance for operators. Machines conform to EC hygiene and safety standards.

Features

• High productivity: up to 2100 cycles/hour; compact footprint for production lines
• Construction in stainless steel and anodized aluminum for food-industry environments
• Interchangeable forming cylinders available in one or two shapes; supplied with a standard forming cylinder and scraper
• Certified food-contact materials throughout
• Standard conveyor belt; optional outfeed belt for line integration
• Easy portion thickness and weight adjustment
• Safety devices: coded magnetic micro-switches and guards prevent access to moving parts
• Paddles, forming cylinder and product hopper removable without tools for cleaning and maintenance

Technical specification

• Feed pan capacity: 23 L
• Productivity: 2100 pcs/h
• Three phase motor: 0.75 kW (1 HP)
• Single phase motor: 0.65 kW (0.9 HP)
• Maximum shape diameter: 120 mm
• Net weight: 50 Kg
