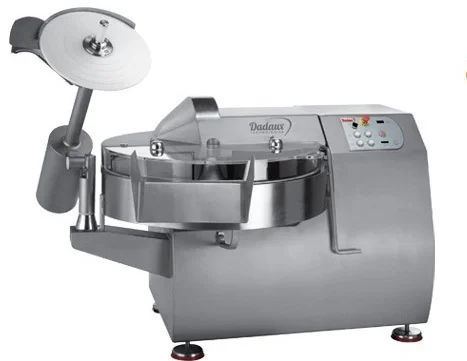

Industrial bowl cutter

high-speed rotating

Overview
An industrial bowl cutter for meat processing manufactured entirely from stainless steel. High knife speeds combined with an extra-thick cast stainless steel bowl enable precise chopping and rapid production of fine forcemeat with minimal heat build-up. Suitable for a wide range of products including ground pork and beef, hamburger mixes, poultry emulsions, vegetable chopping and processed cheese or sausage mixes.

Design and features

• Equipped with two motors with two speeds (standard)
• Cast stainless steel bowl (thickness 10–20 mm) with 6 knives
• Monobloc stainless steel frame with high rigidity
• Knife adjustment allows positioning very close to the bowl for consistent cutting
• Minimal clearance between bowl and lid for fast fine grinding with limited product heating
• Rounded lid and frame design for hygienic, easy cleaning
• Low-voltage control (24 V). Complies with CE standards

Technical specifications

• Number of knives: 6
• Bowl capacity: 40 L
• Bowl motor: 5.5 kW (2.5 HP)
• Knives motor: 5.5 kW (2.5 HP)
• Net weight: 380 kg
• Bowl speed: 8 / 16 rpm
• Knives speed: 1500 / 3000 rpm
• Voltage: 400 V / 50 Hz

Applications

• Minced meat (pork, beef)
• Hamburger and burger mixes
• Meat emulsions for poultry products
• Vegetable and salad chopping
• Processed cheese and fresh sausage mixes
