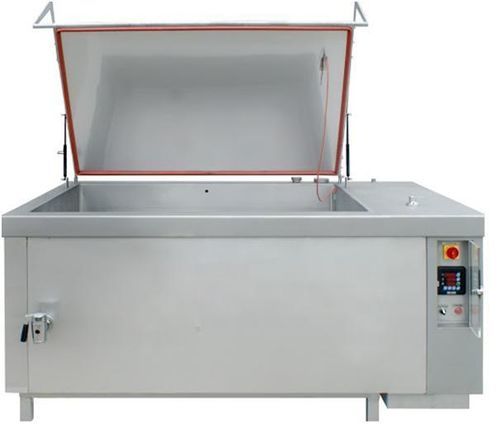

Steam boiling pan

for cold cutsfor the food industrystainless steel

Description
Heat boilers made by ZaftechIndia are designed to produce sausages, hams, offals and many other products. Devices are made entirely of stainless steel AISI 304 with a tightly sealed lid and are available with four types of power supply: oil, gas, electricity and steam. They are designed for automatic operation using a reliable microcontroller to control the technological process, ensuring repeatability and consistent product quality with minimal operator intervention.

Features

• Heating options: oil, gas, electric or steam.
• Construction: fully made of AISI 304 stainless steel (referred to as 0H18N9), with thermal insulation and a tightly fitting lid.
• Control: automatic operation via Mikster INDU 50 controller to monitor and control process parameters, ensuring repeatability and reduced operator involvement.
• Heat exchanger: unique design combined with high-quality thermal oils for high thermal efficiency.
• Customization: dimensions can be tailored to customer production requirements.

Specification
CAPACITY | BOWL LENGTH [MM] | BOWL WIDTH [MM] | BOWL DEPTH [MM] | EXTERNAL LENGTH [MM] | EXTERNAL WIDTH [MM] | EXTERNAL HEIGHT [MM]
200L | 600 | 600 | 600 | 1200 | 850 | 1080
300L | 300 | 800 | 700 | 600 | 1300 | 1100
400L | 400 | 1000 | 700 | 600 | 1500 | 1100
500L | 500 | 1000 | 850 | 600 | 1500 | 1250
600L | 600 | 1000 | 1000 | 600 | 1500 | 1400
800L | 800 | 1400 | 1000 | 600 | 1900 | 1400
1000L | 1000 | 1700 | 1000 | 600 | 2200 | 1400

Technical specifications

• Material: stainless steel AISI 304 (0H18N9) with thermal insulation and tightly fitting lid.
• Power supply options: oil, gas, electricity, steam; electric heating possible.
• Control: designed for automatic operation via Mikster INDU 50 microcontroller which controls and monitors process parameters to ensure repeatability and product quality with minimal operator involvement.
• Heat exchanger: unique design using high-quality thermal oils for very high efficiency.
• Customization: dimensions configurable per customer request.
• Available capacities and dimensions: 200L — Bowl (LxWxD mm): 600 x 600 x 600 — External (LxWxH mm): 1200 x 850 x 1080.
• Available capacities and dimensions: 300L — Bowl (LxWxD mm): 300 x 800 x 700 — External (LxWxH mm): 600 x 1300 x 1100.
• Available capacities and dimensions: 400L — Bowl (LxWxD mm): 400 x 1000 x 700 — External (LxWxH mm): 600 x 1500 x 1100.
• Available capacities and dimensions: 500L — Bowl (LxWxD mm): 500 x 1000 x 850 — External (LxWxH mm): 600 x 1500 x 1250.
• Available capacities and dimensions: 600L — Bowl (LxWxD mm): 600 x 1000 x 1000 — External (LxWxH mm): 600 x 1500 x 1400.
• Available capacities and dimensions: 800L — Bowl (LxWxD mm): 800 x 1400 x 1000 — External (LxWxH mm): 600 x 1900 x 1400.
• Available capacities and dimensions: 1000L — Bowl (LxWxD mm): 1000 x 1700 x 1000 — External (LxWxH mm): 600 x 2200 x 1400.
