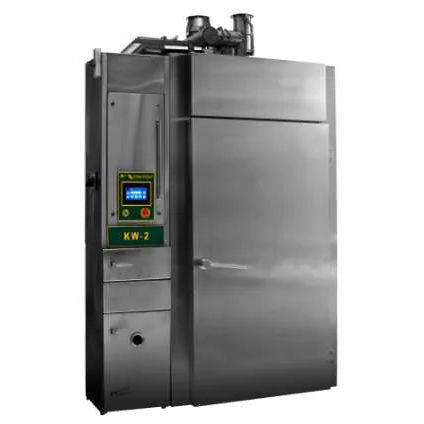

Meat smoking chamber

for poultryfor cheesefor fish

Overview

• Smoking chambers are designed for the heat-processing of cured meat, poultry, fish and cheese, including drying, roasting, hot-air smoking and steaming.

Construction

• The smoking chamber comprises: heat chamber; smoke generator; steering cabinet equipped with a microprocessor controller.
• The chamber and casing are manufactured in stainless steel with thermal insulation.
• The supporting frame is assembled from prefabricated sections joining the front and rear walls; ceiling and walls provide thermal insulation.

Features

• The smoke generator consumes 3–10 mm smoking chips and includes electric ignition and a built-in temperature sensor; an automatic extinguishing system activates if chips ignite.
• Smoke-generator operation and combustion temperature are controlled by a microprocessor.
• The microprocessor controller manages flaps, smoke-generator ignition and operating levels; process sequences can be programmed.
• Monitored/controlled parameters include: product internal temperature, chamber temperature, chamber humidity and other process variables.

Technical specification
TYPE | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Power (kW) electric heating
I-trolley | 1260-1290 | 1450-1500 | 2565-2750 | 600-900 | 25–38
II-trolley | 2325-3390 | 1470-1700 | 2360-2750 | 750-1100 | 46–49
III-trolley | 3380-4590 | 1470-1700 | 2360-2750 | 900-1200 | 68–75
IV-trolley | 2365-5790 | 1470-3000 | 2360-2750 | 1000-1300 | 90–97

Technical characteristics

• Material: stainless steel chamber and casing with thermal insulation.
• Smoke generator: burns 3–10 mm smoking chips; electric ignition; built-in temperature sensor and automatic extinguishing system.
• Control: microprocessor-controlled smoke generator and process controller to operate flaps, ignition and programmable sequences.
• Monitored parameters: internal product temperature, chamber temperature, chamber humidity and other process parameters.
• I-trolley – Length: 1260-1290 mm; Width: 1450-1500 mm; Height: 2565-2750 mm; Weight: 600-900 kg; Power: 25–38 kW (electric heating).
• II-trolley – Length: 2325-3390 mm; Width: 1470-1700 mm; Height: 2360-2750 mm; Weight: 750-1100 kg; Power: 46–49 kW (electric heating).
• III-trolley – Length: 3380-4590 mm; Width: 1470-1700 mm; Height: 2360-2750 mm; Weight: 900-1200 kg; Power: 68–75 kW (electric heating).
• IV-trolley – Length: 2365-5790 mm; Width: 1470-3000 mm; Height: 2360-2750 mm; Weight: 1000-1300 kg; Power: 90–97 kW (electric heating).
