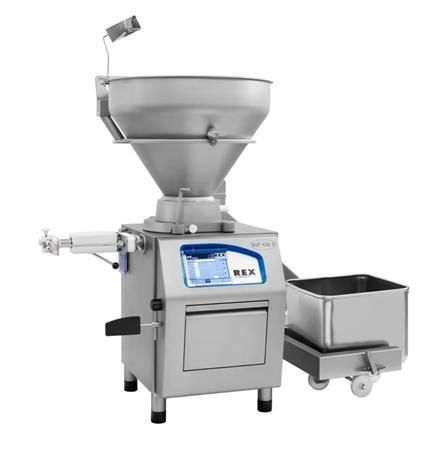

Servo-driven vacuum filler

high-precisionfor sausages

Overview
These vacuum fillers are engineered for medium-sized food-processing operations. Compact, hygienic machine housing and a large rotary vane conveyor enable gentle transport of emulsions and larger meat pieces while maintaining portioning accuracy.

Applications
Designed for portioning and feeding downstream equipment such as clipping machines, hanging lines (REX) and various production attachments in meat and sausage processing plants.

Description

• Large rotary vane conveyor system for gentle product transport
• Modern servo drive concept for precise portioning
• 'S' variant available with servo-twisting drive for casing/twist operations
• Folding hopper options: 100 L, 160 L, 250 L and 350 L
• Optional lifting/tipping device for 120 L and 200 L standard lift trucks
• User-friendly touch-screen interface for easy operation and recipe management

Specification

• Power: 6 kW
• Max portioning speed: approx. 1000/min
• Portioning weight range: 1 - 99,999 g
• Filling pressure: 45 bar
• Hopper capacity example: 250 L / 500 lb
• Weight: 1100 kg
• External dimensions (WxDxH): 2036 x 926 x 1356 mm

Technical specifications

• Rotary vane conveyor available with 8, 12 or 14 vanes or blind vanes
• 'S' variant includes servo-twisting drive
• Optional lifting/tipping device for 120 L and 200 L standard lifting trucks
• Servo drive concept for accurate portioning control
• Touch-screen operator interface for simplified operation
