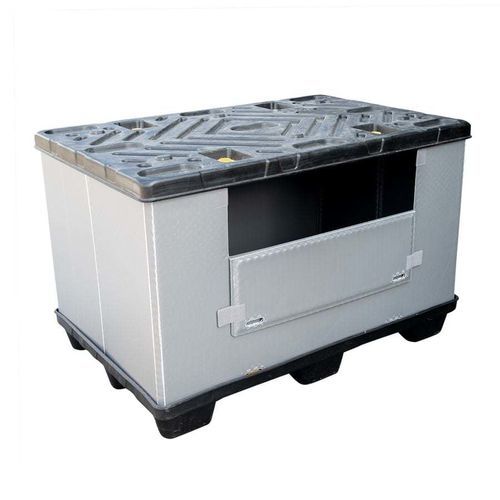

HDPE pallet box P1210.900.300

for the automotive industryfor the pharmaceutical industryagricultural

Overview
High-quality twin-sheet HDPE reusable sleeve pack pallet box. Height can be customised to project requirements. Sleeve walls insert into the pallet edges; the lid rests on the walls to close the container and allow safe stacking. Available as collapsible, stackable units; walk-in configuration optional.

Available Dimensions
Dimensions (mm): 1200x1000xH900
External dimensions (mm): 1200x1000xH900
Internal Dimensions (mm): 1140*940*730
Ground size (mm): 1200×1000

Standard sizes (examples)
Outside – Inside
800 * 600 – 730 * 530
1200 * 800 – 1135 * 735
1250 * 850 – 1200 * 800
1200 * 1000 – 1140 * 940
1200 * 800 – 1130 * 730 (3 runners)
1200 * 1000 – 1130 * 930 (3 runners)

Container & Long sizes (examples)
1150 * 1150 – 1100 * 1100
1220 * 1150 – 1145 * 1100
1350 * 1150 – 1290 * 1090
1470 * 1150 – 1400 * 1080
1600 * 1150 – 1540 * 1080
2070 * 1150 – 2000 * 1080

Special sizes (examples)
820 * 620 – 770 * 570
1100 * 1100 – 1050 * 1050
1100 * 1000 – 1035 * 935
1200 * 1060 – 1140 * 1000
1590 * 980 – 1530 * 920

Construction
WALLS: 10–11 mm thick, impact-resistant polypropylene (PP) laminated twin-sheet with cellular structure; weight 2,500–4,500 g/m2 depending on load capacity. 18 mm walls available on request.
EDGES: closed rims for hygiene and easy cleaning.
PALLET & LID: HDPE injection-moulded double-layer components.
CONSTRUCTION: sleeve walls are inserted into pallet edges; walls can be fitted with a locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density and up to 18 mm thickness
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Features & Benefits

• Standardised sizes: compatible with racking systems and transport flows.
• Space efficiency: collapsible design reduces storage volume when not in use.
• Cost savings: reusable system lowers single-use packaging costs.
• Ease of handling: lightweight, ergonomic; walk-in version available for easier loading/unloading.
• Enhanced protection: cell-structured laminated walls provide side impact resistance.
• Versatility: suitable for automotive, pharmaceutical, agricultural, retail and other industrial sectors.
• Hygienic & easy to clean: non-porous plastic surfaces.
• Environmentally friendly: reusable and recyclable materials.
• Improved safety: smooth surfaces, rounded edges and stable stacking design.

Technical specifications

• SKU: P1210.900.300
• Marque: ZAMKO
• Category: Sleeve Pack (Plastic pallet boxes)
• Dimensions (mm): 1200x1000xH900
• External dimensions (mm): 1200x1000xH900
• Ground size (mm): 1200×1000
• Internal Dimensions (mm): 1140*940*730
• Load Capacity Static (Kg): 300
• Load Capacity Dynamic (Kg): 300
• Static Stacking: 1+3
• Dynamic Stacking: 1+2
• Wall thickness: 10mm (standard)
• Lid: Yes
• Folding window: Yes
• Walk-In: Optional
• Collar: No
• Condition: New
