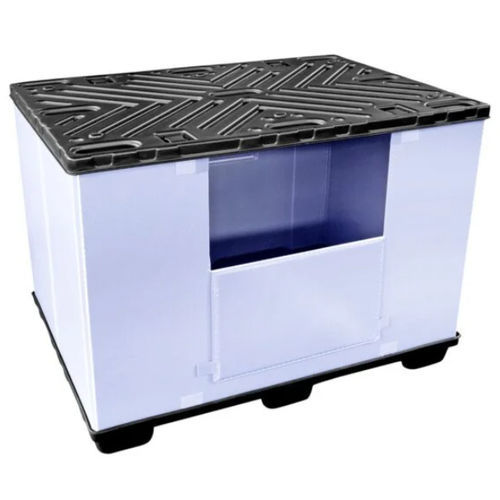

HDPE pallet box P1511.900.300

PPtransporthandling

Product overview
High-quality reusable pallet box. The height is your choice.

Available dimensions — standard, container & long sizes
STANDARD SIZES
Outside / Inside
800 * 600 / 730 * 530
1200 * 800 / 1135 * 735
1250 * 850 / 1200 * 800
1200 * 1000 / 1140 * 940
1230 * 1030 / 1175 * 970
1200 * 800 / 1130 * 730 (3 runners)
1200 * 1000 / 1130 * 930 (3 runners)

CONTAINER & LONG SIZES
Outside / Inside
1150 * 1150 / 1100 * 1100
1220 * 1150 / 1145 * 1100
1350 * 1150 / 1290 * 1090
1470 * 1150 / 1400 * 1080
1500 * 800 / 1440 * 740
1600 * 1150 / 1540 * 1080
1830 * 1130 / 1780 * 1065
2070 * 1150 / 2000 * 1080

Special sizes (examples)
Outside / Inside
820 * 620 / 770 * 570
1100 * 1100 / 1050 * 1050
1100 * 1000 / 1035 * 935
1150 * 985 / 1100 * 930
1200 * 1060 / 1140 * 1000
1240 * 1200 / 1190 * 1150
1590 * 980 / 1530 * 920

Construction
WALLS: 10-11 mm thick, impact-resistant polypropylene (PP) laminated sheet material with cellular structure; weight between ca. 2.500 – 4.500 gr./m2 depending on load capacity.
EDGES: all rims are closed for hygiene and easy cleaning.
PALLET & LID: HDPE injection molded double-layer components.
CONSTRUCTION METHOD: sleeve walls are inserted deep into the pallet edges; lid placed on walls to close the container and make it stackable. Walls can optionally be equipped with a locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Features & benefits

• Standardised sizes ensure compatibility with racking systems and trucks.
• Collapsible design reduces storage space when not in use.
• Reusable design reduces long-term packaging costs.
• Lightweight, ergonomic design for easier handling; a walk-in version is available for many sizes.
• Provides robust protection against damage, contamination and environmental factors.
• Non-porous plastic surfaces are hygienic and easy to clean.
• Promotes sustainability through reusability and recyclability.
• Stable stacking design and smooth rounded edges improve safety during handling.

Notes
Height can be tailored to specifications; pallet and sleeve dimensions can be adapted on special request.

Caractéristiques / spécifications techniques

• SKU: P1511.900.300
• Model / Series: Sleevepack
• Dimensions (outside, mm): 1470x1150xH900
• Ground size (mm): 1470×1150
• External dimensions (mm): 1470x1150xH900
• Internal dimensions (mm): 1400*1080*700
• Width (mm): 1470
• Length (mm): 1150
• Height (mm): 900
• External height (mm): 900
• Load capacity static (Kg): 300
• Load capacity dynamic (Kg): 300
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Wall thickness: 10 mm
• Lid: Yes
• Folding window: Yes
• Walk-In: Optional
• Collar: No
• Condition: New
