Polypropylene pallet box P122115.900.300

HDPEstoragefor the pharmaceutical industry

Product overview

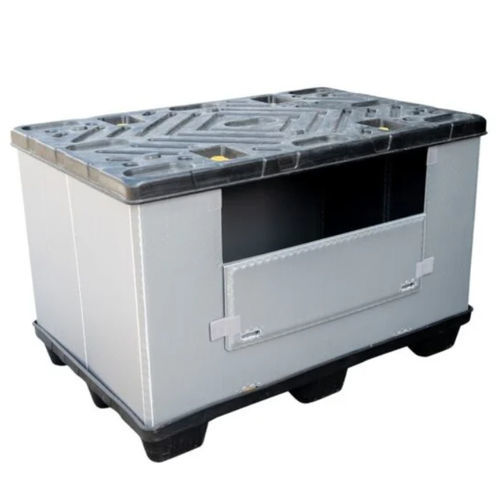

Sleeve pack P122115.900.300 – 1220×1150×H900. Collapsible pallet box with sleeve walls; height configurable to customer specifications. Designed for reusable logistics as a sleeve pack system or pallet container with sleeve.

Available dimensions
Dimensions (product example): 1220×1150×H900 (height configurable).

Standard sizes (Outside → Inside)
1200 * 800 → 1135 * 735
1200 * 1000 → 1140 * 940
1230 * 1030 → 1175 * 970
1200 * 800 → 1130 * 730 (3 runners)
1200 * 1000 → 1130 * 930 (3 runners)

Container & long sizes (Outside → Inside)
1150 * 1150 → 1100 * 1100
1220 * 1150 → 1145 * 1100
1350 * 1150 → 1290 * 1090
1470 * 1150 → 1400 * 1080
1500 * 800 → 1440 * 740
1600 * 1150 → 1540 * 1080
1830 * 1130 → 1780 * 1065
2070 * 1150 → 2000 * 1080

Special sizes (Outside → Inside)
820 * 620 → 770 * 570
1100 * 1100 → 1050 * 1050
1100 * 1000 → 1035 * 935
1150 * 985 → 1100 * 930
1200 * 1060 → 1140 * 1000
1240 * 1200 → 1190 * 1150
1590 * 980 → 1530 * 920

Construction
WALLS: 10–11 mm thick, impact-resistant polypropylene (PP) laminated sheet material with cellular structure. Weight range 2.500–4.500 g/m2 adapted to different load classes.
EDGES: all rims closed for hygiene and easy cleaning.
PALLET & LID: HDPE injection-moulded double-layer components.
CONSTRUCTION: sleeve walls insert into pallet edges; products are loaded into the sleeve and closed with the lid, making the pallet container stackable. Walls can be fitted with an optional locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Quality
Manufactured according to industrial standards using polypropylene laminated sheet and HDPE components. Closed rims and cell-structured walls support hygiene and easy maintenance.

Features & benefits

• Standardised footprints compatible with racking systems and trucks.
• Space efficiency: collapsible design reduces storage footprint when not in use.
• Cost reduction through reuse compared with disposable packaging.
• Ergonomic handling: lightweight design; optional walk-in version for easier loading/unloading.
• Protection against damage, contamination and environmental factors.
• Versatile use across sectors such as automotive, pharmaceuticals, agriculture and retail.
• Hygienic, non-porous surfaces for strict cleaning requirements.
• Recyclable and reusable to support circular logistics.
• Improved safety: smooth surfaces, rounded edges and stable stacking reduce handling risks.

Technical specifications

• Denomination: Sleeve pack (series)
• Model / SKU: P122115.900.300
• Dimensions (mm): 1220×1150×H900
• Width (mm): 1220
• Length (mm): 1150
• Height (mm): 900
• External dimensions (mm): 1220×1150×H900
• Ground size (mm): 1220×1150
• Internal dimensions (mm): 1145×1150×700
• Load capacity static (kg): 300
• Load capacity dynamic (kg): 300
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Wall thickness: 10 mm
• Lid: Yes
• Folding window: Yes
• Walk-in: Optional
• Collar: No
• Condition: New
• Collapsible: Yes
• Stackable: Yes
