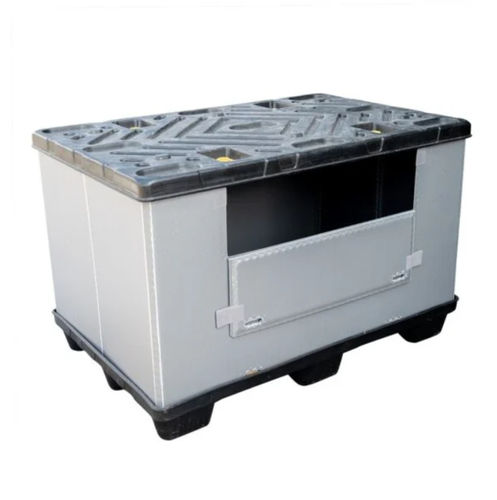

Polypropylene pallet box P12106.900.300

HDPEfor the automotive industryfor the pharmaceutical industry

Overview
High-quality reusable sleeve-pack pallet box. Collapsible and stackable pallet container with optional walk-in version. Height can be tailored to specifications. Designed for protection, hygiene and reusability.

Available dimensions / Standard & container sizes
Dimensions (outside / inside) examples:
Outside × Inside
800 × 600 / 730 × 530
1200 × 800 / 1135 × 735
1250 × 850 / 1200 × 800
1200 × 1000 / 1140 × 940
1230 × 1030 / 1175 × 970
1200 × 800 / 1130 × 730 (3 runners)
1200 × 1000 / 1130 × 930 (3 runners)

Container & long sizes:
1150 × 1150 / 1100 × 1100
1220 × 1150 / 1145 × 1100
1350 × 1150 / 1290 × 1090
1470 × 1150 / 1400 × 1080
1500 × 800 / 1440 × 740
1600 × 1150 / 1540 × 1080
1830 × 1130 / 1780 × 1065
2070 × 1150 / 2000 × 1080

Special sizes
Examples (Outside / Inside):
820 × 620 / 770 × 570
1100 × 1100 / 1050 × 1050
1100 × 1000 / 1035 × 935
1150 × 985 / 1100 × 930
1200 × 1060 / 1140 × 1000
1240 × 1200 / 1190 × 1150
1590 × 980 / 1530 × 920

Construction
WALLS: 10–11 mm thick, impact-resistant polypropylene (PP) laminated sheet material with cellular structure; weight between approx. 2.500 – 4.500 gr./m2 depending on load capacity.
EDGES: All rims are closed for hygiene and easy cleaning.
PALLET & LID: HDPE injection moulded with double layer.
CONSTRUCTION METHOD: Sleeve walls are inserted deeply into pallet edges; lid placed on walls to close container and make it stackable. Walls can be equipped with an optional locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Quality
Designed and produced from high-quality materials. 10 mm cell-structured laminated walls provide strong side-impact protection to secure goods during transport and storage.

Features & Benefits

• Standardised sizes — compatible with common racking systems and transport infrastructure.
• Space efficiency — collapsible design reduces storage footprint when not in use.
• Cost savings — reusable design lowers long-term packaging costs.
• Ease of handling — lightweight, ergonomic; optional walk-in version for easier loading/unloading.
• Enhanced protection — robust protection against damage and contamination.
• Versatility — suitable for automotive, pharmaceuticals, agriculture, retail and more.
• Hygienic and easy to clean — non-porous plastic surfaces.
• Environmentally friendly — reusable and recyclable materials support circular economy.
• Improved safety — smooth surfaces, rounded edges and stable stacking reduce injury/accident risk.

Technical specifications

• Dimensions (mm): 1200x1060xH900
• Width (mm): 1200
• Length (mm): 1060
• Height (mm): 900
• External height (mm): 900
• Ground size (mm): 1200×1060
• Internal dimensions (mm): 1140*1000*730
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Load capacity static (Kg): 300
• Load capacity dynamic (Kg): 300
• Condition: New
• Wall thickness: 10mm
• Lid: Yes
• Folding window: Yes
• Walk-In: Optional
• Collar: No
