HDPE pallet box P16115.900.300

PPfor the automotive industryfor the pharmaceutical industry

Product description

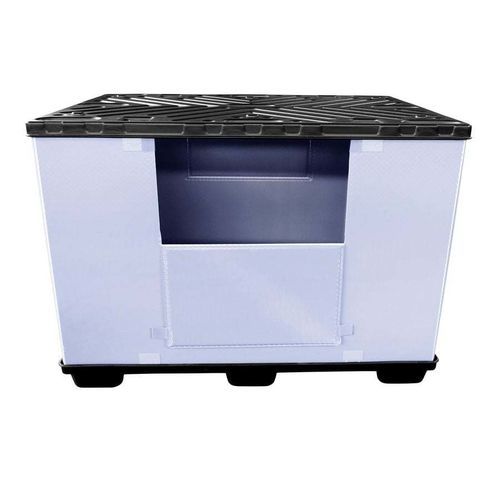

Sleeve pack – 1600×1150. Reusable sleeve pack pallet box. Height is adjustable.

Available dimensions
The height can be adapted to your requirements. The pallet footprints listed below are standard and can be customized on request.

Standard sizes
Outer / Inner
800 * 600 / 730 * 530
1200 * 800 / 1135 * 735
1250 * 850 / 1200 * 800
1200 * 1000 / 1140 * 940
1230 * 1030 / 1175 * 970
1200 * 800 / 1130 * 730 (3 runners)
1200 * 1000 / 1130 * 930 (3 runners)

Container & long sizes
Outer / Inner
1150 * 1150 / 1100 * 1100
1220 * 1150 / 1145 * 1100
1350 * 1150 / 1290 * 1090
1470 * 1150 / 1400 * 1080
1500 * 800 / 1440 * 740
1600 * 1150 / 1540 * 1080
1830 * 1130 / 1780 * 1065
2070 * 1150 / 2000 * 1080

Special sizes
Outer / Inner
820 * 620 / 770 * 570
1100 * 1100 / 1050 * 1050
1100 * 1000 / 1035 * 935
1150 * 985 / 1100 * 930
1200 * 1060 / 1140 * 1000
1240 * 1200 / 1190 * 1150
1590 * 980 / 1530 * 920

Construction
Walls: 10–11 mm thick impact-resistant polypropylene (PP), laminated cellular sheet. Weight between 2,500–4,500 g/m2 according to load capacity.
Edges: all edges are closed for hygiene and easy cleaning.
Base & lid: HDPE injection-moulded, double-layer.
Assembly: Sleeve walls are deeply inserted into the pallet edges, then products are loaded. The lid is placed on the walls to close the pallet container and make it stackable. Walls can be fitted with an optional locking system.

Available options

• Locking system on lid and pallet
• Higher-density sleeve
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD and flame-retardant materials

Features and benefits

• Standardized sizes: available in many standard footprints, compatible with racking and transport systems.
• Space saving: collapsible, reduces storage volume when not in use.
• Cost savings: reusable design reduces need for single-use packaging.
• Easy handling: lightweight, ergonomic design; optional walk-in version for easy loading and unloading.
• Improved protection: protects contents from damage, contamination and environmental effects.
• Versatility: suitable for sectors such as automotive, pharma, agriculture and retail.
• Hygienic and easy to clean: pore-free plastic surfaces simplify cleaning and disinfection.
• Environmentally friendly: reusable and recyclable.

Technical specifications

• Model / SKU: P16115.900.300
• Overall size (Outer): 1600x1150xH900 mm
• Base size: 1600×1150 mm
• Outer height: 900 mm
• Inner dimensions: 1540 × 1080 × 700 mm
• Static load capacity: 300 kg
• Dynamic load capacity: 300 kg
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Wall thickness: 10 mm
• Lid: Yes
• Fold window: Yes
• Walk-in: Optional
• Condition: New
• Collar: NO
• Weight (kg): not specified
