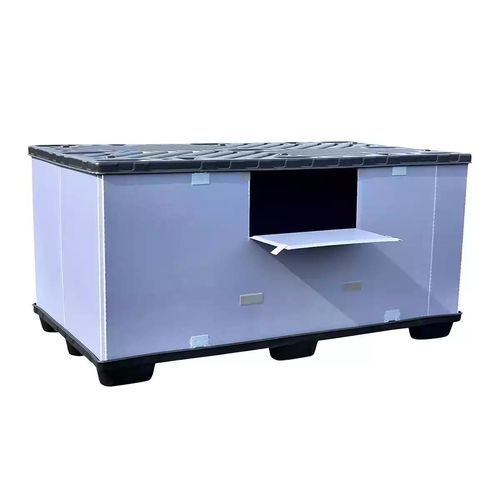

Sleeve pack pallet box P2011.900.300

plasticpolypropyleneHDPE

Product overview
Reusable collapsible sleeve pallet box for industrial transport and storage. Height is selectable to match application requirements. Available dimensions can be tailored to project specifications; standard pallet dimensions can be customised on request.

Standard sizes (Outside → Inside)

• 800 × 600 → 730 × 530
• 1200 × 800 → 1135 × 735
• 1250 × 850 → 1200 × 800
• 1200 × 1000 → 1140 × 940
• 1230 × 1030 → 1175 × 970
• 1200 × 800 → 1130 × 730 (3 runners)
• 1200 × 1000 → 1130 × 930 (3 runners)

Container & long sizes (Outside → Inside)

• 1150 × 1150 → 1100 × 1100
• 1220 × 1150 → 1145 × 1100
• 1350 × 1150 → 1290 × 1090
• 1470 × 1150 → 1400 × 1080
• 1500 × 800 → 1440 × 740
• 1600 × 1150 → 1540 × 1080
• 1830 × 1130 → 1780 × 1065
• 2070 × 1150 → 2000 × 1080

Special sizes (Outside → Inside)

• 820 × 620 → 770 × 570
• 1100 × 1100 → 1050 × 1050
• 1100 × 1000 → 1035 × 935
• 1150 × 985 → 1100 × 930
• 1200 × 1060 → 1140 × 1000
• 1240 × 1200 → 1190 × 1150
• 1590 × 980 → 1530 × 920

Construction

• Walls: 10–11 mm thick impact-resistant polypropylene (PP) laminated sheet with cellular structure; weight approx. 2,500–4,500 g/m² depending on load capacity.
• Edges: all rims closed to ensure hygiene and facilitate cleaning.
• Pallet & lid: HDPE injection-moulded double-layer components.
• Assembly: sleeve walls insert deeply into pallet edges; load product, then place lid to close container and enable stacking. Walls can be fitted with an optional locking system.

Available options

• Locking system for lid & pallet
• Sleeve with higher density material
• Logo and barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD and flame-retardant materials

Features & benefits

• Standardised dimensions compatible with racking systems and trucks.
• Space efficiency: collapsible design reduces storage footprint when not in use.
• Cost savings: reusable design lowers single-use packaging costs.
• Ease of handling: lightweight, ergonomic design; walk-in version available for easier loading/unloading.
• Enhanced protection: effective barrier against damage, contamination and environmental factors.
• Versatility: suitable for automotive, pharmaceutical, agricultural and retail supply chains.
• Hygienic and easy to clean: non-porous plastic surfaces.
• Environmentally friendly: reusable and recyclable, supports circular economy.
• Improved safety: smooth surfaces, rounded edges and stable stacking design.

Technical specifications

• SKU: P2011.900.300
• Dimensions (outside): 2070 × 1150 × H900 mm
• External dimensions: 2070 × 1150 × H900 mm
• Internal dimensions: 2000 × 1080 × 700 mm
• Ground size: 2070 × 1150 mm
• Width (mm): 2070
• Length (mm): 1150
• Height (mm): 900
• Static stacking: 1+3
• Dynamic stacking: 1+1
• Load capacity static: 300 Kg
• Load capacity dynamic: 300 Kg
• Wall thickness: 10 mm
• Lid: Yes
• Folding window: Yes
• Walk-in: Optional
• Collar: No
• Condition: New
