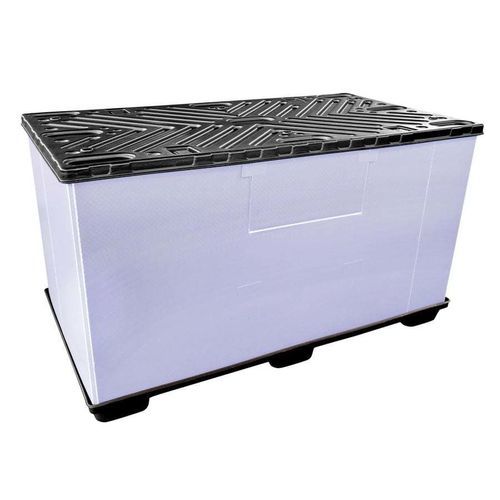

Polypropylene pallet box P1811.900.300

HDPEtransporthandling

Overview
High-quality reusable pallet box. The height can be tailored to your specifications. Collapsible sleeve-pack design for space efficiency; walls made of impact-resistant polypropylene (PP) laminated cellular sheet; pallet and lid manufactured by HDPE injection molding. The sleeve walls are inserted deep into the pallet edges; the lid closes the pallet container and makes it stackable. Optional locking system available.

Available dimensions (examples)
Dimensions (mm): 1830x1120xH900

Standard sizes (outside → inside)
800 × 600 → 730 × 530
1200 × 800 → 1135 × 735
1250 × 850 → 1200 × 800
1200 × 1000 → 1140 × 940
1230 × 1030 → 1175 × 970
1200 × 800 → 1130 × 730 (3 runners)
1200 × 1000 → 1130 × 930 (3 runners)

Container & long sizes (outside → inside)
1150 × 1150 → 1100 × 1100
1220 × 1150 → 1145 × 1100
1350 × 1150 → 1290 × 1090
1470 × 1150 → 1400 × 1080
1500 × 800 → 1440 × 740
1600 × 1150 → 1540 × 1080
1830 × 1130 → 1780 × 1065
2070 × 1150 → 2000 × 1080

Special sizes (outside → inside)
820 × 620 → 770 × 570
1100 × 1100 → 1050 × 1050
1100 × 1000 → 1035 × 935
1150 × 985 → 1100 × 930
1200 × 1060 → 1140 × 1000
1240 × 1200 → 1190 × 1150
1590 × 980 → 1530 × 920

Construction
WALLS: 10-11 mm thick, impact-resistant polypropylene (PP) laminated sheet material with cellular structure; weight between approx. 2.500 – 4.500 g/m² depending on required load capacity. EDGES: closed rims for hygiene and easy cleaning. PALLET & LID: HDPE injection molding with double layer. CONSTRUCTION METHOD: sleeve walls inserted into pallet edges; lid placed on walls to close container and allow stacking. Walls can be equipped with an optional locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Features & Benefits

• Standardised sizes: compatible with racking systems and trucks; tailored sizes on request
• Space efficiency: collapsible design reduces storage volume when not in use
• Cost savings: reusable design reduces one-time packaging needs
• Ease of handling: lightweight, ergonomic; optional walk-in version for easier loading/unloading
• Enhanced protection: strong laminated walls provide side impact protection and hygiene
• Versatility: suitable for automotive, pharmaceuticals, agriculture, retail and other industries
• Hygienic and easy to clean: non-porous plastic surfaces
• Environmentally friendly: reusable and recyclable materials
• Improved safety: smooth surfaces and stable stacking reduce risk of injuries and accidents

Caractéristiques / spécifications techniques

• SKU: P1811.900.300
• Series / Model name: Sleevepack
• Dimensions (mm) (outside): 1830x1120xH900
• Ground size (mm): 1830×1120
• Internal dimensions (mm): 1780 × 1065 × 700
• Width (mm): 1830
• Length (mm): 1120
• Height / External height (mm): 900
• Load capacity static (Kg): 300
• Load capacity dynamic (Kg): 300
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Wall thickness: 10 mm (cell-structured laminated)
• Lid: Yes
• Folding window: Yes
• Walk-in: Optional
• Collar: No
• Condition: New
• Material: PP laminated sheet walls; HDPE pallet & lid
