Polypropylene pallet box P123103.900.300

HDPEstoragefor the automotive industry

Product overview

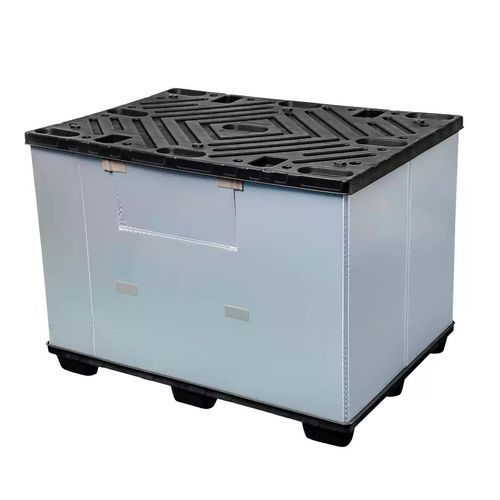

Collapsible sleeve pack pallet container manufactured from impact-resistant polypropylene (PP) laminated sheet with cellular structure. Sleeve walls insert into the pallet edges; lid sits on the walls to close the container and enable stacking. Height can be tailored to specification. Condition: New.

Standard sizes

• Outside 800 × 600 — Inside 730 × 530
• Outside 1200 × 800 — Inside 1135 × 735
• Outside 1250 × 850 — Inside 1200 × 800
• Outside 1200 × 1000 — Inside 1140 × 940
• Outside 1230 × 1030 — Inside 1175 × 970
• Outside 1200 × 800 — Inside 1130 × 730 (3 runners)
• Outside 1200 × 1000 — Inside 1130 × 930 (3 runners)

Container & long sizes

• Outside 1150 × 1150 — Inside 1100 × 1100
• Outside 1220 × 1150 — Inside 1145 × 1100
• Outside 1350 × 1150 — Inside 1290 × 1090
• Outside 1470 × 1150 — Inside 1400 × 1080
• Outside 1500 × 800 — Inside 1440 × 740
• Outside 1600 × 1150 — Inside 1540 × 1080
• Outside 1830 × 1130 — Inside 1780 × 1065
• Outside 2070 × 1150 — Inside 2000 × 1080

Special sizes

• Outside 820 × 620 — Inside 770 × 570
• Outside 1100 × 1100 — Inside 1050 × 1050
• Outside 1100 × 1000 — Inside 1035 × 935
• Outside 1150 × 985 — Inside 1100 × 930
• Outside 1200 × 1060 — Inside 1140 × 1000
• Outside 1240 × 1200 — Inside 1190 × 1150
• Outside 1590 × 980 — Inside 1530 × 920

Construction
WALLS: 10–11 mm thick, impact-resistant polypropylene (PP) laminated sheet with cellular structure. Weight approx. 2.500–4.500 g/m2 depending on load capacity. EDGES: all rims closed for hygiene and easy cleaning. PALLET & LID: HDPE injection-moulded, double layer. CONSTRUCTION: walls inserted into pallet edges; lid placed on walls to close and make stackable. Walls can be fitted with a locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Features & Benefits

• Standardised sizes compatible with most racking systems and trucks
• Space efficiency: collapsible design reduces storage volume when not in use
• Cost savings through reuse compared with single-use packaging
• Ease of handling: lightweight and ergonomic; walk-in version available for easier loading/unloading
• Protection against damage, contamination and environmental factors
• Versatility: suitable for automotive, pharmaceuticals, agriculture, retail and other industries
• Hygienic and easy to clean: non-porous plastic surfaces
• Environmentally friendly: reusable and recyclable materials
• Improved safety: smooth surfaces, rounded edges and stable stacking design

Technical specifications

• Dimensions (mm): 1230x1030xH900
• Width (mm): 1230
• Length (mm): 1030
• Height (mm): 900
• External height (mm): 900
• Ground size (mm): 1230×1030
• External dimensions (mm): 1230x1030xH900
• Internal Dimensions (mm): 1175×790×730
• Load Capacity Static (Kg): 300
• Load Capacity Dynamic (Kg): 300
• Static Stacking: 1+3
• Dynamic Stacking: 1+2
• Wall thickness: 10 mm
• Lid: Yes
• Folding window: Yes
• Walk-In: Optional
• Collar: No
• Condition: New
