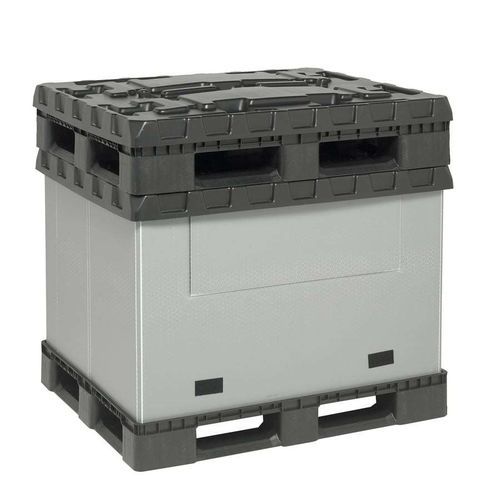

Polypropylene pallet box PA1210.900

HDPEPPfor the automotive industry

Product overview
Sleevepack (skids) PA1210.900 — reusable, collapsible pallet container sized 1200×1000 mm with configurable height (example: H900 mm). Designed for industrial handling and returnable logistics.

Key characteristics

• Collapsible design: foldable sleeve walls for reduced volume when empty
• Stackable: stable stacking (static 1+3, dynamic 1+1)
• Folding window: included
• Walk-in version: available for selected ground sizes (this SKU: no)
• Lid: available; optional locking system
• Material: impact-resistant polypropylene (PP) laminated sheet with cellular structure
• Wall thickness: 10 mm
• Hygienic, easy to clean, reusable and recyclable

Available dimensions
The height can be tailored to your specifications. Standard ground dimensions below can be customized on request.

STANDARD SIZES (Outside → Inside mm)
800 × 600 → 730 × 530
1200 × 800 → 1135 × 735
1250 × 850 → 1200 × 800
1200 × 1000 → 1140 × 940
1230 × 1030 → 1175 × 970
1200 × 800 (3 runners) → 1130 × 730
1200 × 1000 (3 runners) → 1130 × 930

CONTAINER & LONG SIZES (Outside → Inside mm)
1150 × 1150 → 1100 × 1100
1220 × 1150 → 1145 × 1100
1350 × 1150 → 1290 × 1090
1470 × 1150 → 1400 × 1080
1500 × 800 → 1440 × 740
1600 × 1150 → 1540 × 1080
1830 × 1130 → 1780 × 1065
2070 × 1150 → 2000 × 1080

SPECIAL SIZES (Outside → Inside mm)
820 × 620 → 770 × 570
1100 × 1100 → 1050 × 1050
1100 × 1000 → 1035 × 935
1150 × 985 → 1100 × 930
1200 × 1060 → 1140 × 1000
1240 × 1200 → 1190 × 1150
1590 × 980 → 1530 × 920

Construction

• Walls: 10–11 mm impact-resistant PP laminated sheet with cellular structure; material weight ~2,500–4,500 g/m² depending on load class
• Edges: closed rims for hygiene and simplified cleaning
• Pallet & lid: HDPE injection-moulded, double layer
• Assembly: sleeve walls inserted into pallet edges; load goods, place lid to close and enable stacking. Walls can be fitted with optional locking systems

Available options

• Locking system for lid & pallet
• Sleeve with higher density material
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD and flame-retardant materials

Features & Benefits

• Standardised sizes: compatible with racking and transport systems
• Space efficiency: collapsible sleeve reduces storage volume when empty
• Cost savings: reusable design reduces single-use packaging needs
• Ease of handling: lightweight, ergonomic; walk-in version available for some sizes
• Protection: 10 mm cell-structured laminated walls protect contents from impact and contamination
• Versatility: suitable for automotive, pharmaceuticals, agriculture, retail and more
• Hygienic: non-porous, easy-to-clean surfaces
• Environmentally friendly: designed for reuse and recycling
• Improved safety: smooth surfaces, rounded edges and stable stacking

Technical specifications

• Model: Sleevepack (skids)
• SKU: PA1210.900
• Ground size: 1200×1000 mm
• Dimensions (mm): 1200 × 1000 × H900
• Width (mm): 1200
• Length (mm): 1000
• Height (mm): 900
• External height (mm): 900
• Static stacking: 1+3
• Dynamic stacking: 1+1
• Load capacity static: 300 kg
• Load capacity dynamic: 300 kg
• Wall thickness: 10 mm
• Lid: Yes
• Folding window: Yes
• Walk-in: No
• Collar: No
• Condition: New
