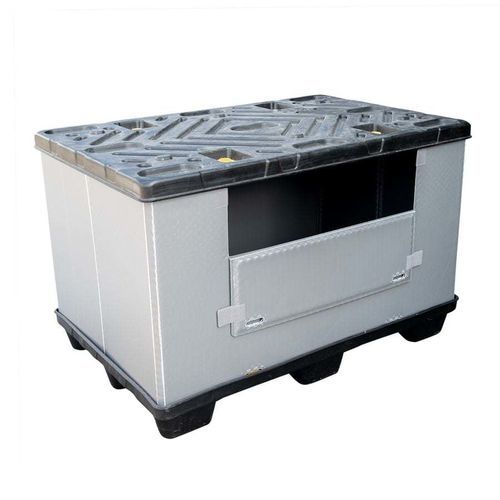

HDPE pallet box P11510.900.300

PPtransporthandling

Overview
High-quality reusable pallet box sleeve manufactured from twin-sheet laminated polypropylene walls and HDPE injection-moulded pallet and lid. Height can be tailored to specification. Designed as a collapsible sleeve pack for pallet containers to provide side-impact protection and hygienic, easy-to-clean surfaces.

Available dimensions & sizes

• Standard sizes (Outside / Inside): 800×600 / 730×530; 1200×800 / 1135×735; 1250×850 / 1200×800; 1200×1000 / 1140×940; 1230×1030 / 1175×970; 1200×800 / 1130×730 (3 runners); 1200×1000 / 1130×930 (3 runners)
• Container & long sizes (Outside / Inside): 1150×1150 / 1100×1100; 1220×1150 / 1145×1100; 1350×1150 / 1290×1090; 1470×1150 / 1400×1080; 1500×800 / 1440×740; 1600×1150 / 1540×1080; 1830×1130 / 1780×1065; 2070×1150 / 2000×1080
• Special sizes (Outside / Inside): 820×620 / 770×570; 1100×1100 / 1050×1050; 1100×1000 / 1035×935; 1150×985 / 1100×930; 1200×1060 / 1140×1000; 1240×1200 / 1190×1150; 1590×980 / 1530×920

Construction
Walls: 10–11 mm thick, impact-resistant laminated PP twin-sheet with cellular structure. Edges: closed rims to ensure hygienic surfaces and simplified cleaning. Pallet & lid: HDPE injection-moulded double-layer components. Assembly: sleeve walls insert into pallet edges; lid fits onto walls to close the container and allow secure stacking. Walls can be supplied with an optional locking system.

Available options

• Locking system for lid & pallet
• Higher-density sleeve material
• Logo and barcode printing
• Label holder(s)
• Custom sleeve colours
• ESD and flame-retardant materials

Features & Benefits

• Standardised dimensions compatible with racking systems and transport logistics
• Collapsible design reduces storage footprint when not in use
• Reusable solution lowers long-term packaging costs
• Lightweight and ergonomic handling; optional walk-in configuration available
• Improved protection against impact, contamination and environmental factors
• Hygienic, non-porous surfaces — easy to clean and sanitise
• Environmentally friendly: reusable and recyclable
• Stable stacking design with smooth rounded edges for safer handling

Technical Specifications (table)
Dimensions (mm): 1150×985×H900
Width (mm): 1150
Length (mm): 985
Height (mm): 900
External height (mm): 900
Ground size (mm): 1150×985
Internal dimensions (mm): 1100×930×730
Static stacking: 1+3
Dynamic stacking: 1+2
Load capacity static (kg): 300
Load capacity dynamic (kg): 300
Wall thickness: 10 mm
Lid: Yes
Folding window: Yes
Walk-in: Optional
Collar: No
Condition: New

Characteristics / Technical specifications

• Model family: Sleevepack
• Typical external dimensions: 1150×985×H900 mm
• Typical internal dimensions: 1100×930×730 mm
• Ground size: 1150×985 mm
• Wall thickness: 10 mm (cell-structured laminated)
• Static load capacity: 300 kg
• Dynamic load capacity: 300 kg
• Stacking: static 1+3, dynamic 1+2
• Construction materials: impact-resistant laminated polypropylene walls; HDPE injection-moulded pallet & lid
• Features: collapsible sleeve, foldable window, optional walk-in, optional locking system
• Options: higher-density sleeve, logo/barcode printing, label holders, custom colours, ESD & flame-retardant material
• Condition on this product listing: New
