HDPE pallet box P12585.900.300

PPtransporthandling

Product overview

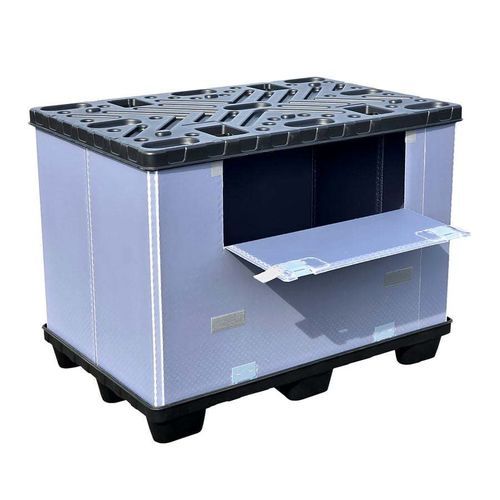

This reusable sleeve pack pallet container is composed of a pallet base, detachable laminated polypropylene sleeve walls and a lid to close the unit and enable stackability. Sleeve walls are impact-resistant and available in variable heights to match project requirements. Offered in standard, container/long and special sizes for industrial handling and logistics.

Available dimensions & sizes

• Ground size / Dimensions (mm): 1250x850xH900
• Internal dimensions (mm): 1200×800×720

Standard sizes (outside → inside)

• 800 × 600 → 730 × 530
• 1200 × 800 → 1135 × 735
• 1250 × 850 → 1200 × 800
• 1200 × 1000 → 1140 × 940
• 1230 × 1030 → 1175 × 970
• 1200 × 800 → 1130 × 730 (3 runners)
• 1200 × 1000 → 1130 × 930 (3 runners)

Container & long sizes (outside → inside)

• 1150 × 1150 → 1100 × 1100
• 1220 × 1150 → 1145 × 1100
• 1350 × 1150 → 1290 × 1090
• 1470 × 1150 → 1400 × 1080
• 1500 × 800 → 1440 × 740
• 1600 × 1150 → 1540 × 1080
• 1830 × 1130 → 1780 × 1065
• 2070 × 1150 → 2000 × 1080

Special sizes (outside → inside)

• 820 × 620 → 770 × 570
• 1100 × 1100 → 1050 × 1050
• 1100 × 1000 → 1035 × 935
• 1150 × 985 → 1100 × 930
• 1200 × 1060 → 1140 × 1000
• 1240 × 1200 → 1190 × 1150
• 1590 × 980 → 1530 × 920

Construction

• WALLS: 10–11 mm thick impact-resistant laminated polypropylene (PP) sheet with cellular structure; sheet weight approx. 2,500–4,500 g/m² depending on load capacity.
• EDGES: Closed rims for hygiene and easy cleaning.
• PALLET & LID: HDPE injection-moulded components with double-layer design.
• ASSEMBLY: Sleeve walls insert into pallet edges; after loading the lid is placed on the walls to close the container and allow stacking. Walls can be fitted with optional locking system.

Available options

• Locking system for lid & pallet
• Higher density sleeve material
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD and flame-retardant materials

Features & benefits

• Standardised sizes ensure compatibility with pallet racking and transport systems
• Collapsible sleeve design reduces return and storage volume
• Reusable construction lowers long-term packaging costs
• Lightweight ergonomic handling; walk-in (access) versions available for several ground sizes
• Provides protection against damage and contamination; non-porous surfaces are easy to clean
• Promotes sustainability through reusability and recyclability
• Smooth surfaces and rounded edges improve handling safety

Technical specifications

• Series: Sleevepack
• SKU: P12585.900.300
• External dimensions (mm): 1250 × 850 × H900
• Internal dimensions (mm): 1200 × 800 × 720
• Width (mm): 1250
• Length (mm): 850
• Height (mm): 900
• Ground size (mm): 1250×850
• Static load capacity: 300 kg
• Dynamic load capacity: 300 kg
• Static stacking: 1+3
• Dynamic stacking: 1+2
• Wall thickness: 10 mm
• Weight (kg): depends on configuration
• Lid: Yes
• Folding window: Yes
• Walk-in: Optional
• Collar: No
• Condition: New
